9cbm Concrete Mixing Truck

Введение продукта

8cbm Concrete Mixing Truck is equipped with all-steel radial tyre as standard, which features high loading capacity, low rolling resistance, nice wear resistance, and good puncture-proof performance. The concrete mixer machine transportation tank mix tube and 4.5 T dump truck chassis with 2 u-bolt and special mat iron can be firmly installed one ,and form the concrete transport tank.the main use is to transport mixtrue concrete to destination on time and quickly.this tank also can be used as mixing drum.

hamacchina
0086-371-86525099
sales@hamacchina.com
0086-15136236223

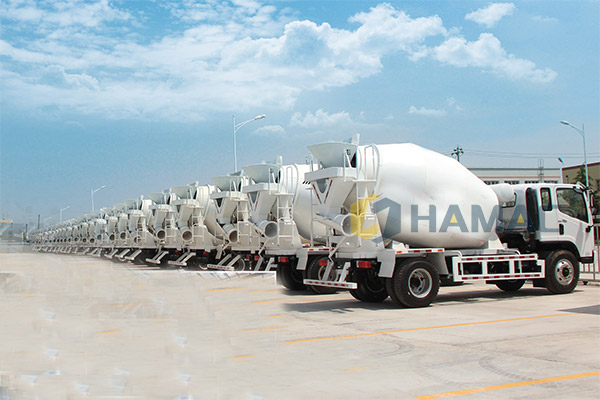

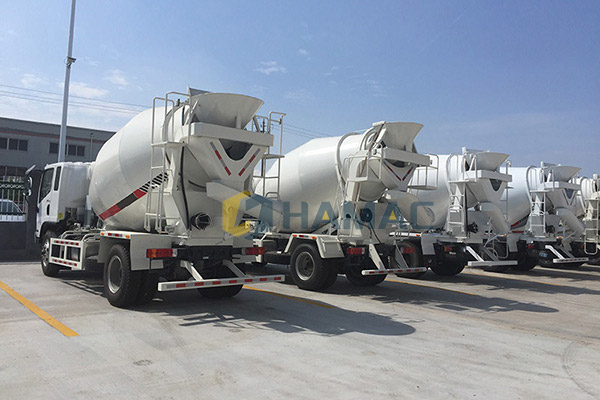

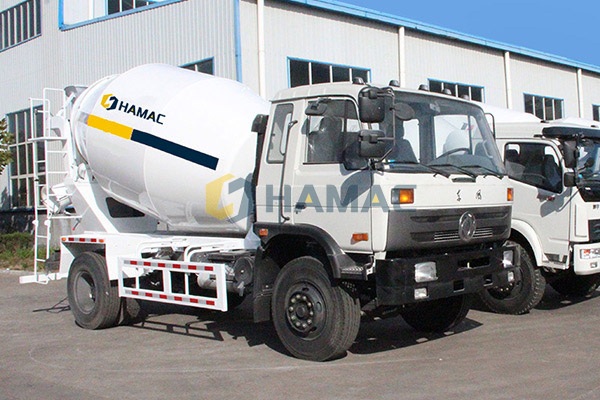

Подробные фотографии

FEEDBACK

Performance

1. The whole truck is convenient and stable with strong intensity. Sperical purpose chassis is specially designed for rural market, even narrow country road can be easily handled;
2. Concrete mixing tank with superior performance, optimized design of concrete mixing tank, improve loading ability, mixing on average without separation;
3. The blade has unique wear-resisting protection structure, improving blade service lift 80%;
4. The design of low angle of inclination. Center of gravity is lower than similar concrete transit mixer at 5%, safety factory higher 10%;

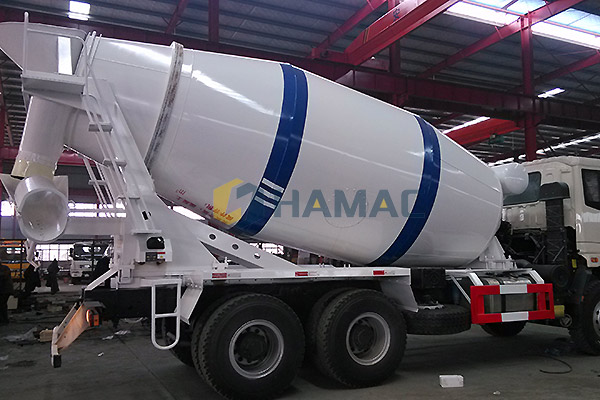

Manufacturing Process

Specification

Model Name		Technical data
Model Name		Unit	9 m3
Vehicle data	Model		ZZ1257N4048W/ZZ1256N4046C1
	Total Length	mm	9800
	Total Width	mm	2490/2490
	Total Height	mm	3830
	Chassis Model		HOWO ZZ1257N4048W/ ZZ1256N4046C1
	Overall Weight	kg	25000
	Curb Weight	kg	15650
	Wheel Base	mm	4025+1350
	Front Tread	mm	2022
	Rear Tread	mm	1830
	Tyre Model		11.00-20,12.00-20
	Front Overhang	mm	1500
	Rear Overhang	mm	2980
	Min. Turning Radius	m	10.1
	Max. Traveling Speed	Km/h	86/97
	Steering Device(GERMANY )		ZF8098
	Oil Consumption per 100 km(under limited conditions)	L	34
Engine	Engine Model		WD615.95(E)
	Cylinder Number and Arrangement		Linear 6-cylinder
	Engine max. output power	kw	247/2200
	Max. Engine Torque	N.M	1420/1100
Working Device	Mixing Drum Volume	m3	17.05
	Mixing Cubage	m3	10
	Mixing Drum Slope Angle	%	12
	Mixing Drum Rotating Speed	r/min	0-14
	Feeding Speed	M3/min	≥3.5
	Discharging Speed	m3/min	≥1.5
	Slump	mm	100~230
	Surplus Rate	%	<0.5
	Water Tank Capacity	L	260
