Y series Wheeled Skid Steer Loader

Вступление

Y series Wheeled Skid Steer Loader is a new generation of small multi-function equipment integrating mechanics, electronics and hydraulics under the independent research and development of HAMAC, with every performance index having reached the international advanced level. The machine features compact structure, flexible movement, convenient operation, efficient working, powerful function and simple maintenance. It is especially applicable to urban infrastructure, roads or construction sites, workshop, warehouse, dock, ship deck, even inside of cabin and other places with narrow space and frequently-changed operational contents. By changing different devices, it realizes the shoveling and carrying, lifting, digging, drilling, crushing, scraping,scarification, snow blowing, deicing, road sweeping, pavement milling, and compaction operation.

hamacchina
0086-371-86525099
sales@hamacchina.com
0086-15136236223

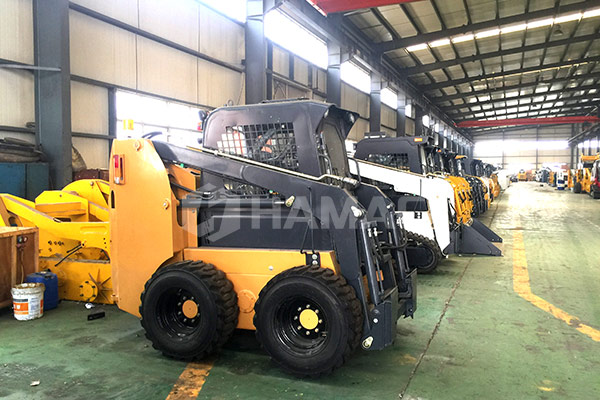

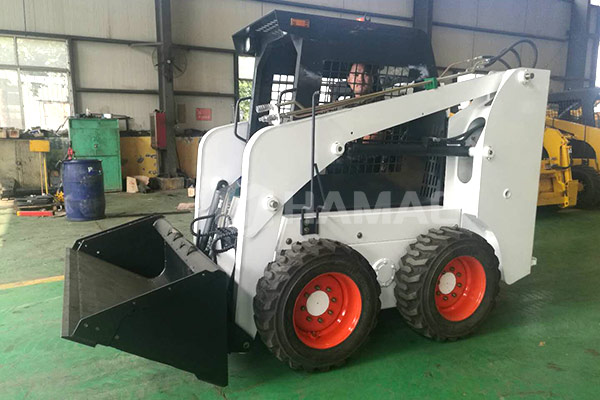

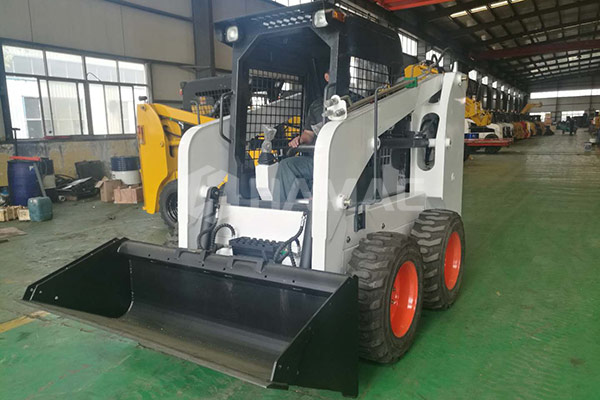

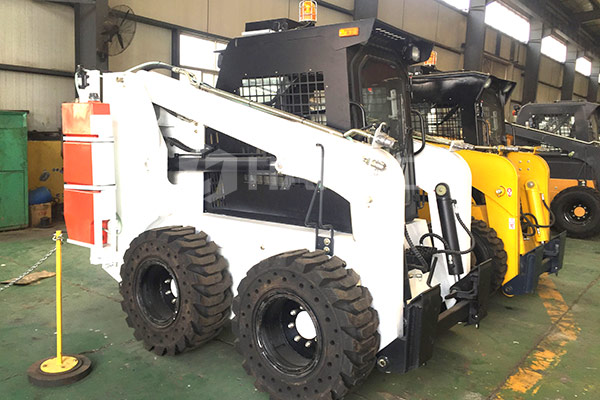

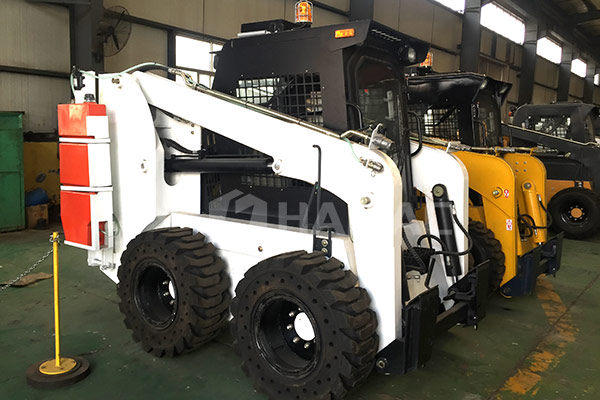

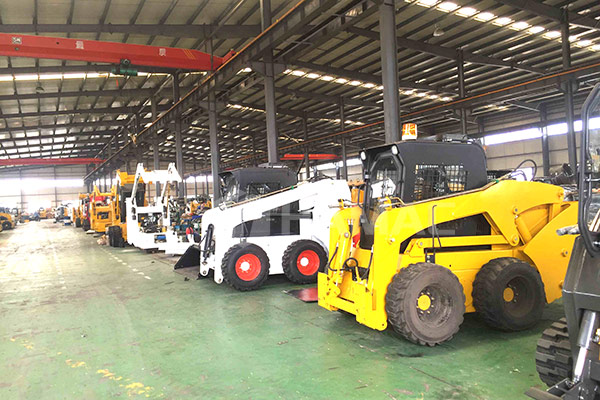

Подробные фотографии

FEEDBACK

Спектакль

1. Y series product is equipped with manual servo system, easily to be operated, higher work efficiency;
2. Simple structure, high cost performance, lower maintain cost, is a classic product in the overseas market;

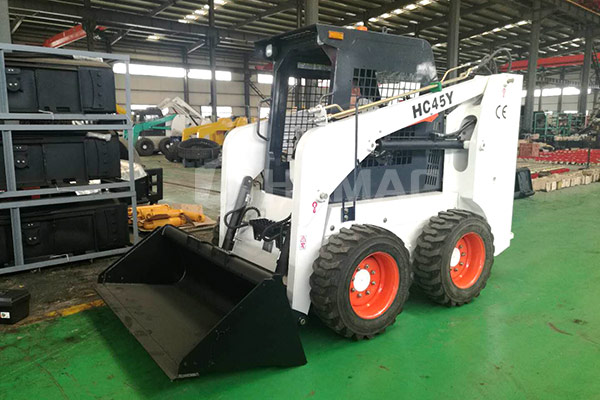

3. This series product range is JC45Y, JC60Y and JC65Y. Domestic brand engine and international brand engine as optional.

Навесное оборудование с бортовым поворотом

Навесное оборудование с бортовым поворотом предлагает обширную, постоянно растущую линию высококачественных навесных погрузчиков для строительной и сельскохозяйственной техники.

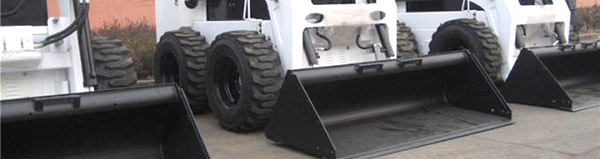

Combination Bucket

Pallet Forks

Dozer Blade Grader Leveler

Snow Pusher

Grapple Bucket

Grapple Rake

Bale Squeeze

Grapple Rock Bucket

Hay Spear

Mixer

Digging Backhoe

Utility Digging Backhoe

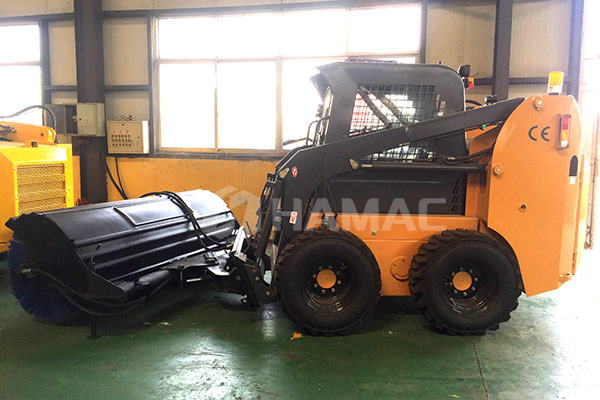

Pick Up Broom

Tree Spade

Get all the Skid Steer Loader Attachments

Решения с бортовым поворотом удовлетворят все ваши потребности в шнековом поворотном шнеке, начиная от приводов и заканчивая комплектующими. Ознакомьтесь с каждым из наших вариантов шнека сегодня и удивитесь всему, что может сделать для вас навесное оборудование шнекового погрузчика.

Спецификация

Model	HC45Y	HC60Y	HC65Y
Operating Load (kg)	700	800	950
Max. Speed (km/h)	12	12	12
Hydraulic flow (L/min)	62.5	75	75
Tire Model	10-16.5	12-16.5	12-16.5
Rated Power (kW)	37	45	55
Fuel tank Volume (L)	70	80	80
Self Weight (kg)	2700	2800	3000
Bucket Volume (m³）	0.4	0.5	0.5

Structure Data:

Main data/Model	HC45Y	HC60Y	HC65Y
Overall operating height (mm)	3980	4000	4000
Height to bucket hinge pin (mm)	3080	3100	3100
height to top of cab (mm)	2140	2160	2160
Height to bottom of level bucket(mm)	2913	2933	2933
Overall length without bucket(mm)	2640	2750	2750
overall length with bucket(mm)	3420	3490	3490
Dumping angle at maximum height(° )	40	40	40
Dumping height(mm)	2380	2400	2400
Dumping reach(mm)	700	750	750
Rollback o bucket on ground(° )	30	30	30
Rollback of bucket at full height(° )	104	104	104
Wheelbase(mm)	991	1085	1085
Ground clearance(mm)	185	205	205
Angle of departure(° )	20	20	20
Front turning radius without bucket(mm)	1168	1198	1204
Front tuning radius(mm)	1958	1958	2030
Rear tuning radius(mm)	1630	1728	1706
Rear axle to bumper (mm)	1108	1208	1082
Tread width, centerline to centerline (mm)	1450	1500	1500
Width (mm)	1720	1880	1880
Bucket width (mm)	1740	1880	1880
