8cbm Concrete Mixing Truck

Введение продукта

8cbm Concrete Mixing Truck is equipped with all-steel radial tyre as standard, which features high loading capacity, low rolling resistance, nice wear resistance, and good puncture-proof performance. The concrete mixer machine transportation tank mix tube and 4.5 T dump truck chassis with 2 u-bolt and special mat iron can be firmly installed one ,and form the concrete transport tank.the main use is to transport mixtrue concrete to destination on time and quickly.this tank also can be used as mixing drum.

hamacchina
0086-371-86525099
sales@hamacchina.com
0086-15136236223

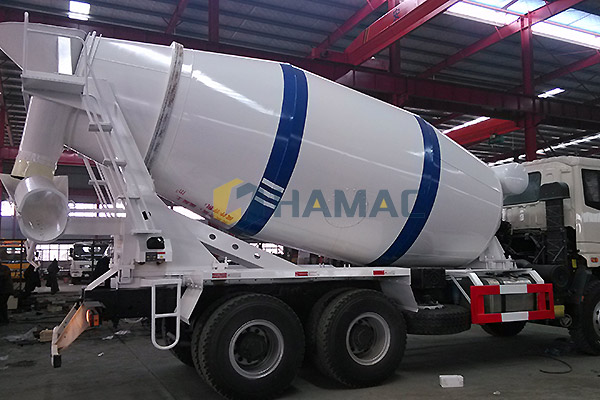

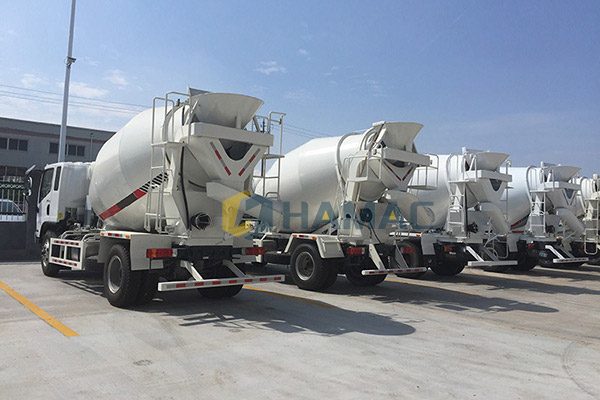

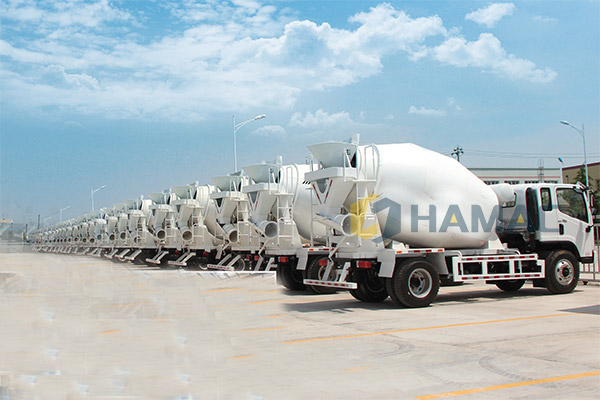

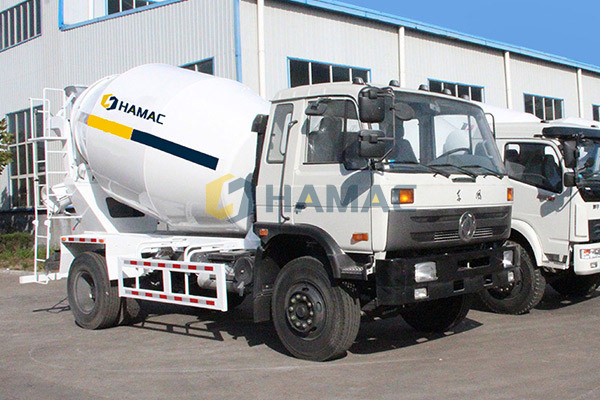

Подробные фотографии

FEEDBACK

Performance

1. The whole truck is convenient and stable with strong intensity. Sperical purpose chassis is specially designed for rural market, even narrow country road can be easily handled;
2. Concrete mixing tank with superior performance, optimized design of concrete mixing tank, improve loading ability, mixing on average without separation;
3. The blade has unique wear-resisting protection structure, improving blade service lift 80%;
4. The design of low angle of inclination. Center of gravity is lower than similar concrete transit mixer at 5%, safety factory higher 10%;

Manufacturing Process

Specification

Capacity	8m3
Chassis brand	FAW/FOTON/DFAC
Chassis Demission（mm）	8300×2470×2850
Wheelbase（mm）	3850+1300,4150+1300
Number of axles	3
Track front（mm）	1980
Track rear（mm）	1860/1860
Front overhang（mm）	1250/2300
Rear overhang （mm）	1250/2850
Approach angle/Departure angle	34/15,34/13
Tyre Number	10
Tyre Size	10.00-20,11.00-20
Plate Spring Number	9 10
Fuel	Diesel
Engine emission standard	National IV
Engine brand	YUCHAI
Power	215kw/290HP
Engine Rated speed（r/min）	2800
Engine Idle speed（r/min）	700~750
Clutch	Biplate Dried constant joint
Transmissions type	Shaft drive transission
Drive mode	Rear Wheel Drive
Turning form	Hydraulic power steering
Service brake	Air-brake
Parking braking	Air brake braking
Max. speed(km/h)	85
Concrete mixing truck Demission（mm）	8700,9550×2500×3760,3880
Mixing volume（m³）	8
Feeding rate（m³/min）	≥2
Discharging rate（m³/min）	≥1.5
Drum rotation speed（r/min）	3~9
Discharging remnant rate	≤0.1%
Water supply mode	Air pressure supply
water tank volume（L）	200
Radiator	24v air-cooled
Reduction box	Fuxin
Motor	Interpump
Hydraulic pump	Interpump
