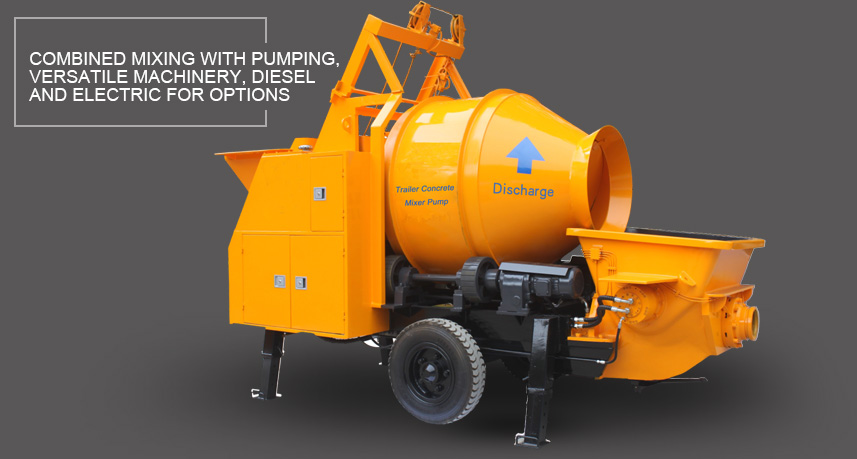

Concrete Mixer with Pump

Concrete Mixer with Pump

Введение продукта

According to the actual construction requirement in the rural districts, small and medium towns, and various construction projects, our company researched and developed this new versatile equipment “concrete mixer with pump” combined with concrete mixing system and concrete delivering system. It is more convenient for the customers.

hamacchina
0086-371-86525099
sales@hamacchina.com
0086-15136236223

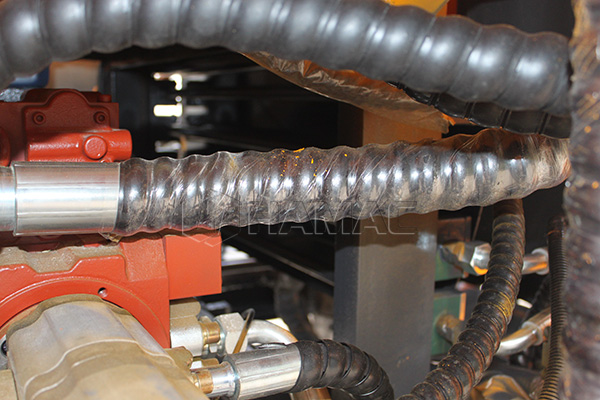

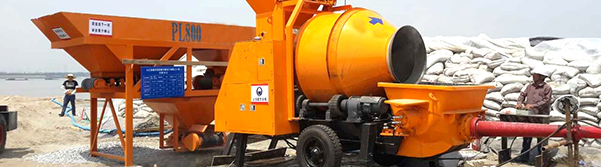

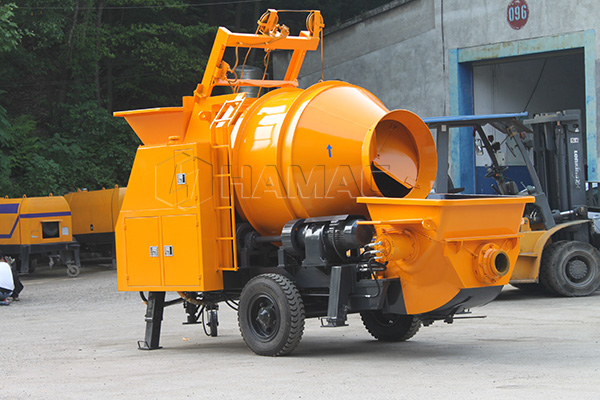

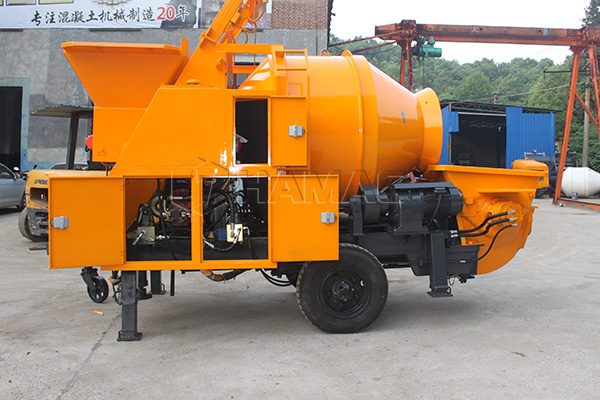

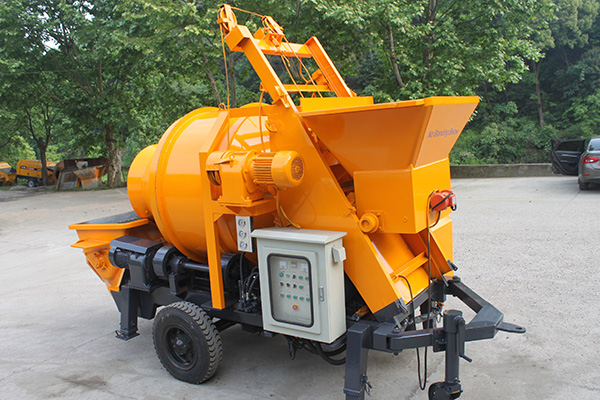

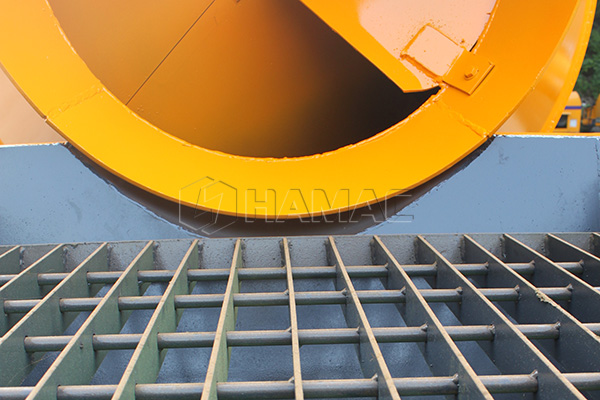

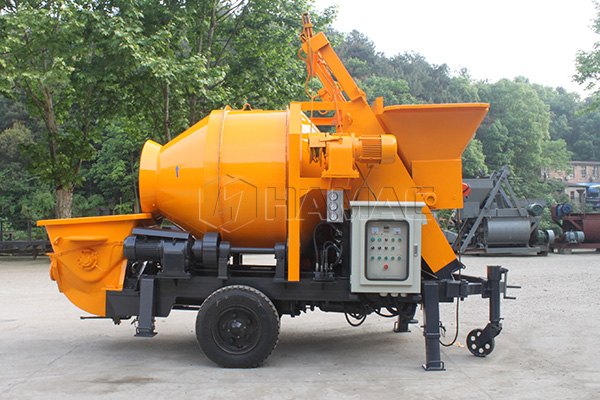

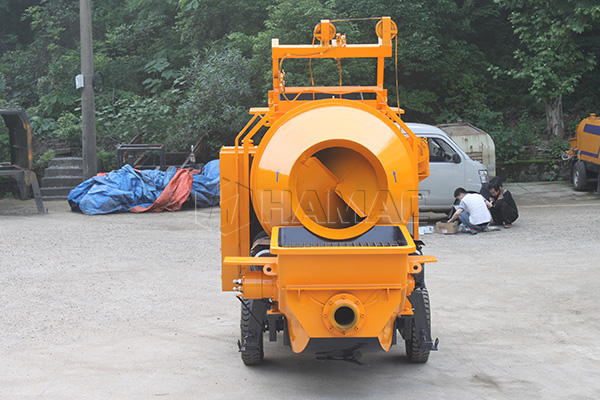

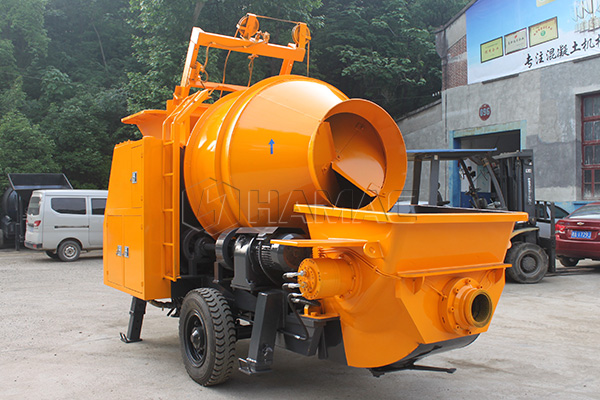

Подробные фотографии

FEEDBACK

Спектакль

1. Suitable for the working area without power supply or lack of electricity;
2. Mixer and pump, combined in one machine, easy to be moved;
3. One worker to operate the mixing and pumping, save your labor cost;

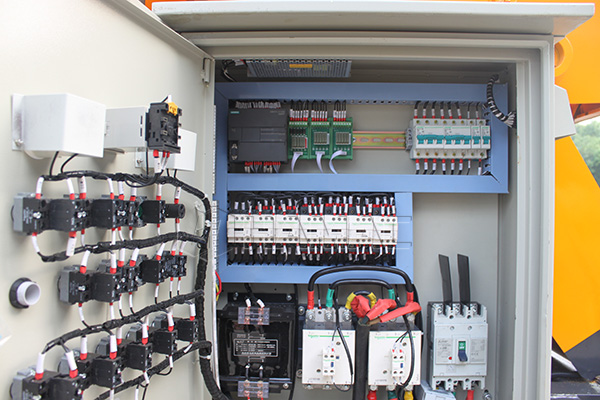

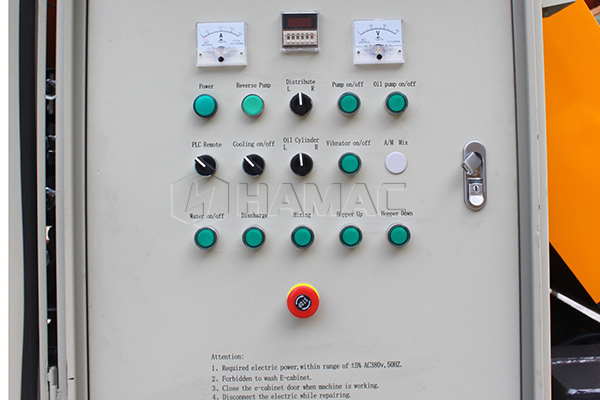

4. PLC controlled, work stable, working life longer;
5. Loading, mixing, discharging and pumping, full hydraulic, full automatic;
6. Manual lubrication, separate water-cooled diesel engine;
7. Two usages of dragging support, could be used as charging platform;
8. Versatile, concrete mixer and concrete pump could work separately.

Производственный процесс

Спецификация

HBT15 Electric Concrete mixer with pump			DHBT15 Diesel Concrete mixer with pump
Power	380V	Customized acceptable	Power	Diesel Engine	52 KW
Power	Electric Component	Siemens/Schneider/Omron	Power	Diesel Engine	1800r/m
Mixing System	Mixer	JZM450 drum mixer	Mixing System	Mixer	Drum Mixer, JZM450
	Mixing Motor	5.5KW		Power	By Hydraulic from Engine
	Hoist Motor	5.5KW		Submersible Pump	hydraulic water pump
	Submersible Pump	0.75KW, pumping water to mixer		Max. Theoretical Mixing Output	25m³/h
	Max. Theoretical Mixing Output	18m³/h	Pumping System	Main Oil Pump	Kawasaki K3V112
Pumping System	Main Motor	37KW		Double Gear Pump	25&16
	Motor Rated Speed	1480Rpm		Valves	overflow and directional valves
	Main Oil Pump	40 cubic meters per hour.		Main Oil Cylinder	Φ100×Φ70×800mm
	Double Gear Pump	25&16		Delivery Cylinder	Φ200×800mm
	Valves	overflow and directional valves		S Valve	Φ200mm
	Main Oil Cylinder	Φ100Φ701000mm		Cutting Ring	Φ200mm
	Delivery Cylinder	Φ200*1000mm		Glass Wear Plate	Φ200mm
	S Valve	Φ200mm		Max. Theoretical Pumping Output	40m³/h
	Cutting Ring	Φ200mm		Hydraulic System Type	Open
	Glass Wear Plate	Φ200mm		Hopper Capacity × Filling Height	600×1050(L×mm)
	Max. Theoretical Pumping Output	40m³/h		Max. Aggregate Size	Pebble:40 Crushed Stone:30 mm
	Outlet Pressure	8Mpa		Outlet Pressure	8Mpa
	Hydraulic System Type	Open		Oil Tank Capacity	200L
	Motor Rated Voltage	380v		Rated Speed	1480Rpm
	Max. Aggregate Size	Pebble:40 Crushed Stone：30		Slumps	12-23cm
	Concrete Outlet Diameter	Φ180mm		Tyre Size	700R16
	Hopper Capacity × Filling Height	8001000 (Lmm)		Towing Speed	Max. 8km/h
	Machine Size(LxWxH)	496021002500 mm	Overall	Total Weight	5300kg
	Total Weight	5300kg		Machine Size(LWH)	496021002600 mm
	Tyre Size	700R16		Delivery height/horizontal distance	70/300m
	Towing Speed	Max. 8km/h		Packing	1 unit packed in 1 40HQ
