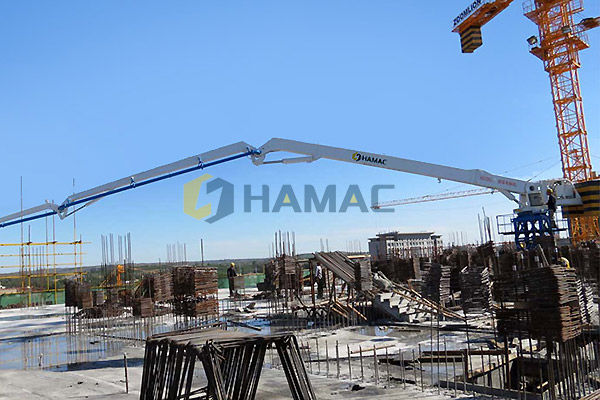

Mobile Hydraulic Concrete Placing Boom

Введение продукта

Concrete placing boom is a new product developed for enlarging the range of concrete pouring and improving the mechanization level of pumping construction. Being corollary equipment of concrete pump, it increases the range of concrete pumping by connecting with concrete pump; also, in effectively solving the hard problem of material distribution in wall pouring, it plays an important role in increasing construction efficiency and reducing labor intensity. This kind of concrete placing boom is reasonably designed, with stable and reliable structure, and the whole machine can be easily operated and flexibly turned due to its all direction and boom-type distributing structure, featuring character of high efficiency and energy-saving, as well as being economical and practical, etc.

hamacchina
0086-371-86525099
sales@hamacchina.com
0086-15136236223

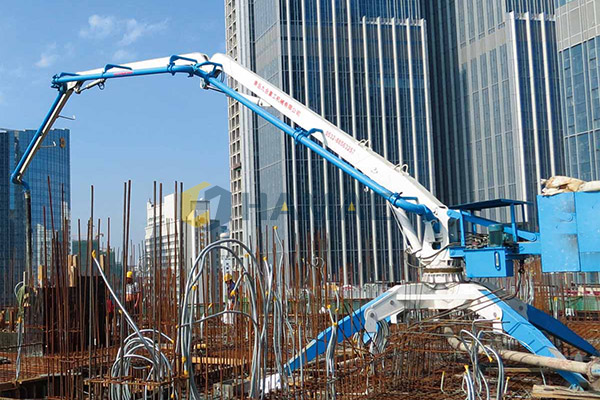

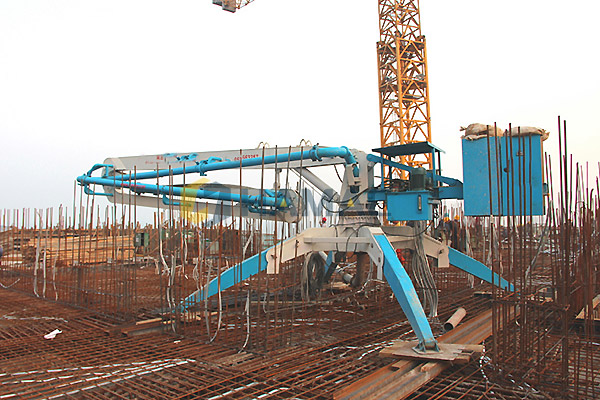

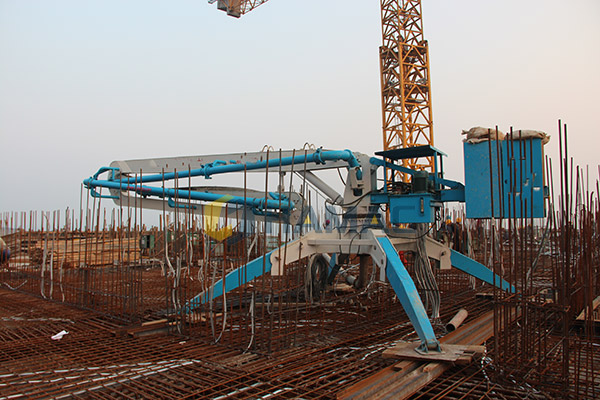

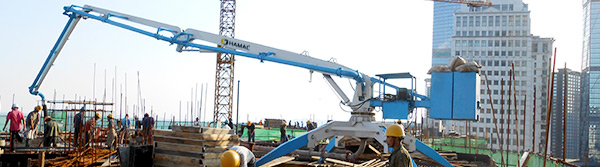

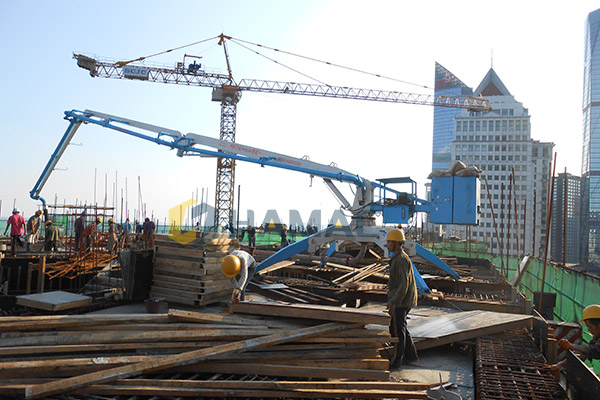

Подробные фотографии

FEEDBACK

Performance

1. It can be placed according to needs of field pouring.
2. Compact structure, light weight, and can be hoisted and transported as a whole.
3. Flexible, widely use and applicable for complex construction site.
4. Easy operation, safe and reliable, economical and practical.

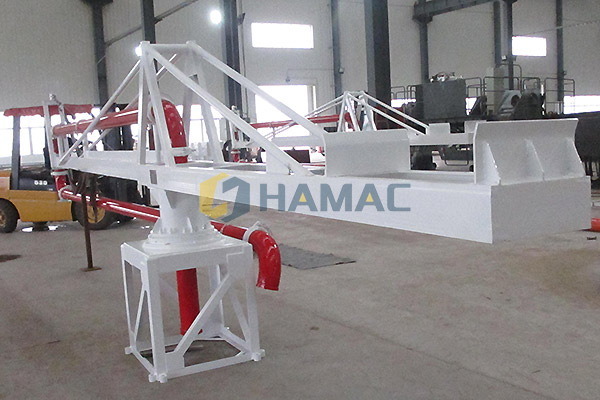

Manufacturing Process

Specification

Item	HGY13	HGY15	HGY17	HGY18
Max. placing radius (m)	13	15	17	18
Big arm length (m)	3.7	6	6.66	7.66
Big arm elevation (°)	-2～84.4	0～70	0～65	0～65
Medium arm length (m)	4.52	5	5.73	5.73
Medium arm elevation (°)	0～180	0～180	0～180	0～180
Small arm length (m)	4.78	4	4.61	4.61
Small arm elevation (°)	0～180	0～180	0～180	0～180
Hose length (m)	3	3	3	3

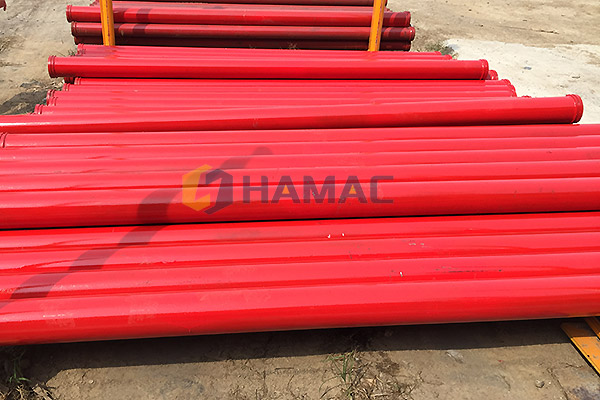

Concrete delivery pipe (mm)	ø125×6	ø125×6	ø125×6	ø125×6
Tail Rotary radius (m)	2.72	2.81	3.51	3.93
Total Power (Kw)	4	4	5.5/7.5	5.5/7.5
System Pressure (MPa)	24	24	24	24
Rotary speed (r/min)	0.3—0.8	0.3—0.8	0.3—0.8	0.3—0.8
Rotary range (°)	0～360	0～360	0～360	0～360
Supporting legs span (m)	3.15×3.15	4×4	4.6×4.6	5×5
Overall height (m)	2.9	2.6	3.2	3.75
Bare machine weight (kg)	2700	3230	5000	6700
Balance weight (kg)	2×900	2×1100	2200	2×1100
Control mode	Panel/ Wireless remote control	Panel/ Wireless remote control	Panel/ Wireless remote control	Panel/ Wireless remote control
