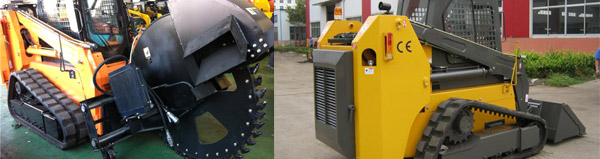

TS series Crawler Skid Steer Loader

Вступление

TS series Wheeled Skid Steer Loader is a new generation of small multi-function equipment integrating mechanics, electronics and hydraulics under the independent research and development of HAMAC, with every performance index having reached the international advanced level. The machine features compact structure, flexible movement, convenient operation, efficient working, powerful function and simple maintenance. It is especially applicable to urban infrastructure, roads or construction sites, workshop, warehouse, dock, ship deck, even inside of cabin and other places with narrow space and frequently-changed operational contents. By changing different devices, it realizes the shoveling and carrying, lifting, digging, drilling, crushing, scraping,scarification, snow blowing, deicing, road sweeping, pavement milling, and compaction operation.

hamacchina
0086-371-86525099
sales@hamacchina.com
0086-15136236223

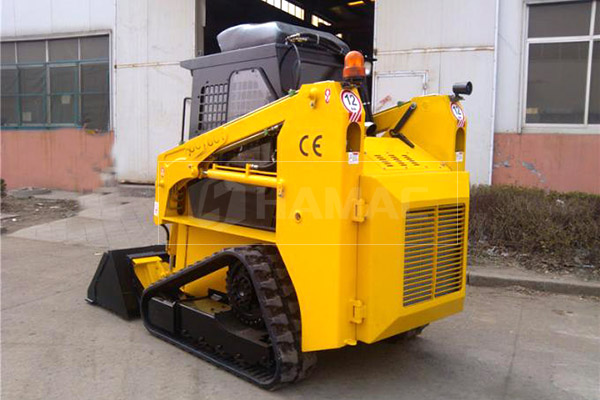

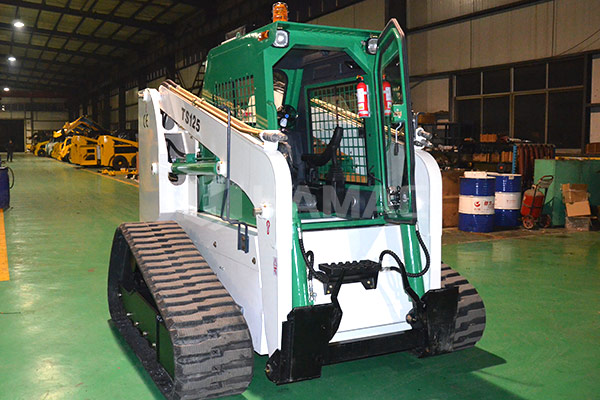

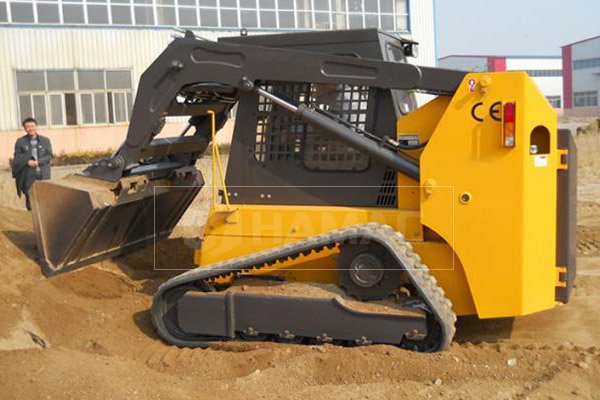

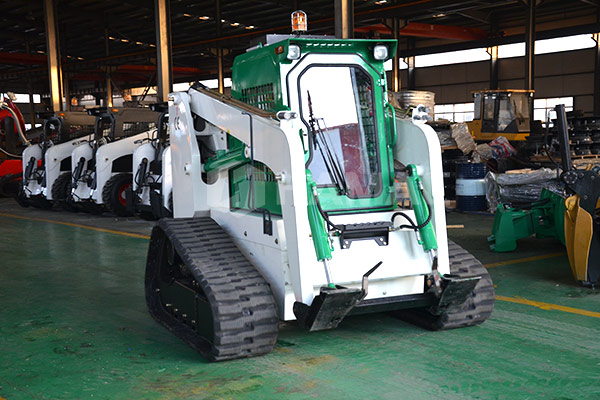

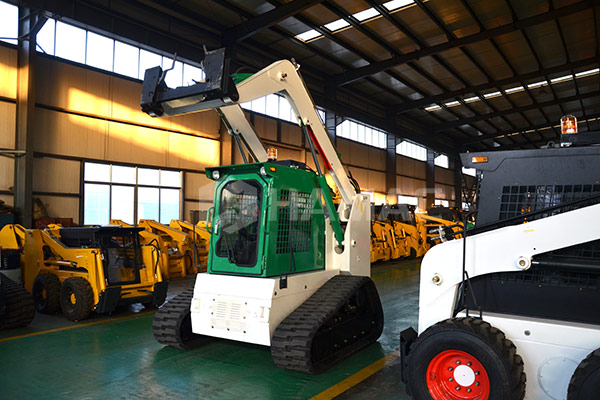

Подробные фотографии

FEEDBACK

Спектакль

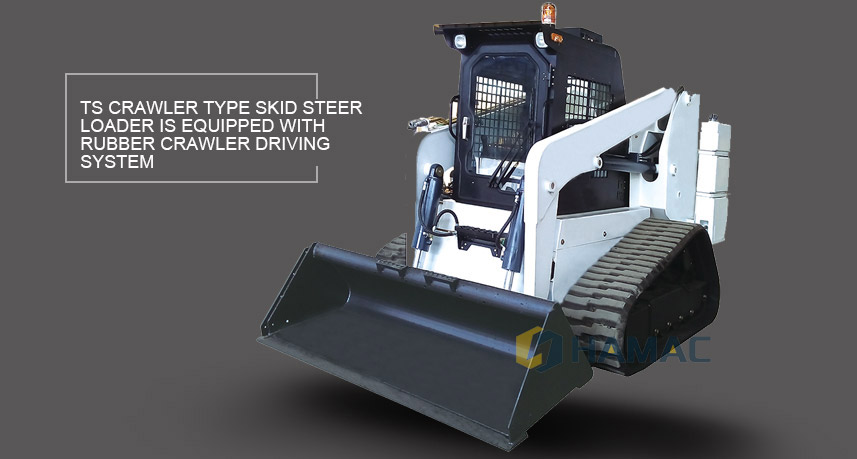

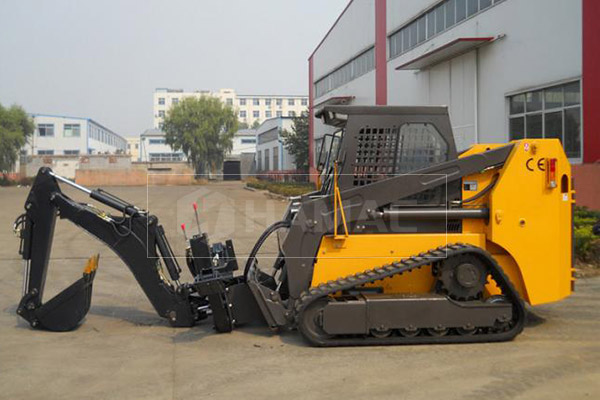

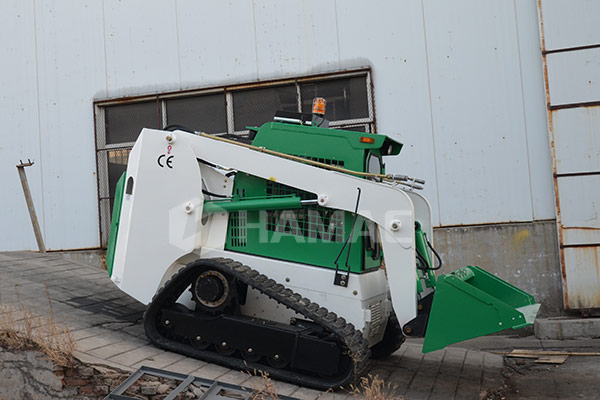

1. TS series crawler type skid steer loader is equipped with rubber crawler driving system. It is suitable for soft ground and mountain work conditions. With double-speed motor, the running speed can reach 18km per hour;
2. Equipped with high flow system, the maximum flow can be 120L/min, 130L/min, 140L/min. A scarifier can be installed at back of machine, the maximum deep tillage will be 500mm.

Навесное оборудование с бортовым поворотом

Навесное оборудование с бортовым поворотом предлагает обширную, постоянно растущую линию высококачественных навесных погрузчиков для строительной и сельскохозяйственной техники.

Combination Bucket

Pallet Forks

Dozer Blade Grader Leveler

Snow Pusher

Grapple Bucket

Grapple Rake

Bale Squeeze

Grapple Rock Bucket

Hay Spear

Mixer

Digging Backhoe

Utility Digging Backhoe

Pick Up Broom

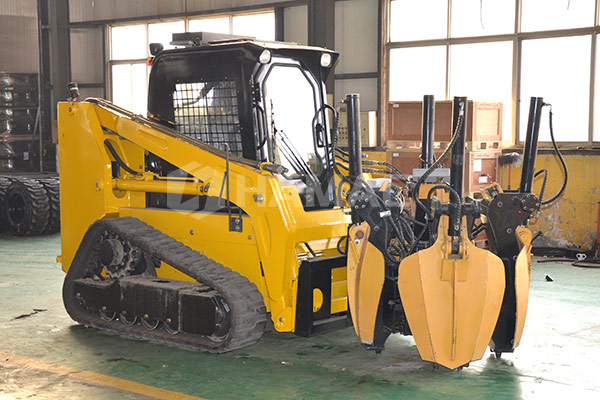

Tree Spade

Get all the Skid Steer Loader Attachments

Решения с бортовым поворотом удовлетворят все ваши потребности в шнековом поворотном шнеке, начиная от приводов и заканчивая комплектующими. Ознакомьтесь с каждым из наших вариантов шнека сегодня и удивитесь всему, что может сделать для вас навесное оборудование шнекового погрузчика.

Спецификация

Model	TS50	TS65	TS75	TS100	TS125
Operating Load (kg)	700	1000	1050	1200	1500
Max. Speed (km/h)	10/15	12/18	12/18	12/18	12/18
Hydraulic flow (L/min)	60	75	80	88	88
High flow system flux			120	140	140
Track Model	300*52.5	320*84	320*84	320*84	450*86
Rated Power (kW)	36	55	55	74	103
Fuel tank Volume (L)	50	80	90	90	90
Self Weight (kg)	2800	3800	3800	4500	4800
Bucket Volume (m³)	0.3	0.5	0.5	0.55	0.6

Structure Data:

Main data/Model	TS50	TS65	TS75	TS100	TS125
Overall operating height (mm)	3350	3480	3480	4070	4070
Height to bucket hinge pin (mm)	2770	2900	2900	3150	3150
height to top of cab (mm)	2050	2150	2150	2160	2160
Height to bottom of level bucket(mm)	2603	2730	2730	2983	2983
Overall length without bucket(mm)	2300	2750	2750	3000	3000
overall length with bucket(mm)	2950	3500	3500	3700	3700
Dumping angle at maximum height(° )	40	40	40	40	40
Dumping height(mm)	2100	2230	2230	2450	2450
Dumping reach(mm)	790	715	715	700	700
Rollback o bucket on ground(° )	30	30	30	30	30
Rollback of bucket at full height(° )	104	104	104	104	104
Wheelbase(mm)	1240	1500	1500	1500	1500
Ground clearance(mm)	140	200	200	200	200
Angle of departure(° )	20	20	20	20	20
Front turning radius without bucket(mm)	1064	1298	1298	1365	1365
Front tuning radius(mm)	1825	2010	2010	2200	2200
Rear tuning radius(mm)	1234	1714	1714	1742	1742
Rear axle to bumper (mm)	594	890	890	938	938
Tread width, centerline to centerline (mm)	1102	1462	1462	1654	1654
Width (mm)	1402	1782	1782	1994	2124
Bucket width (mm)	1500	1830	1830	2030	2160
