SICOMA Double Shaft Concrete Mixer

SICOMA Double Shaft Concrete Mixer

Введение продукта

SICOMA twin shaft concrete mixer is a type of concrete mixer, which mainly consists of tank system, mixing system, driving system, seal lubricating system, discharge system and electrical system. The twin horizontal shafts rotate in high speed, produce convection, thus the mixing process of aggregate, water, cement and additive is finished. SICOMA twin shaft concrete mixer is mainly used to mix powder and granular inertia materials. As one type of 2017 hot sale SICOMA twin shaft concrete mixer, SICOMA twin shaft concrete mixer is widely used for mixing commercial concrete, premixed concrete, and precast concrete, etc. With much higher performance than other mixers, SICOMA twin shaft concrete mixer is suitable for all large-and middle-sized concrete projects.

hamacchina
0086-371-86525099
sales@hamacchina.com
0086-15136236223

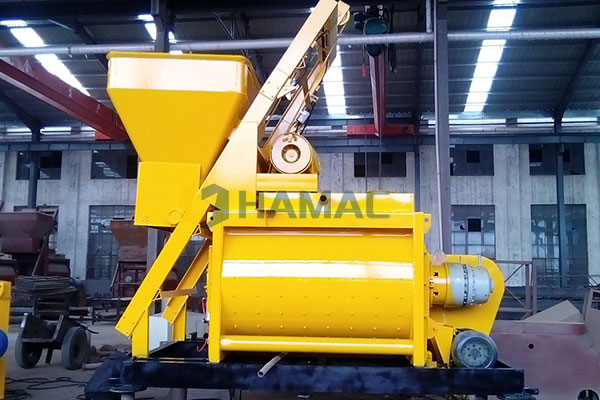

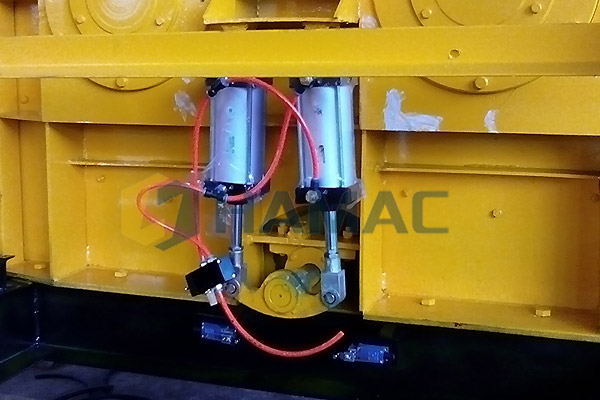

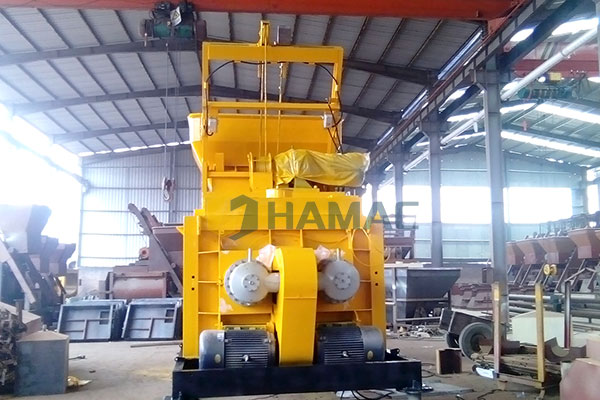

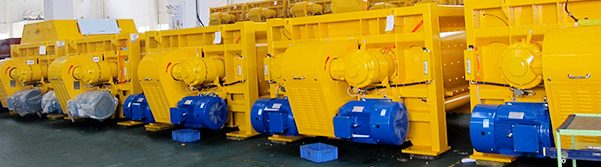

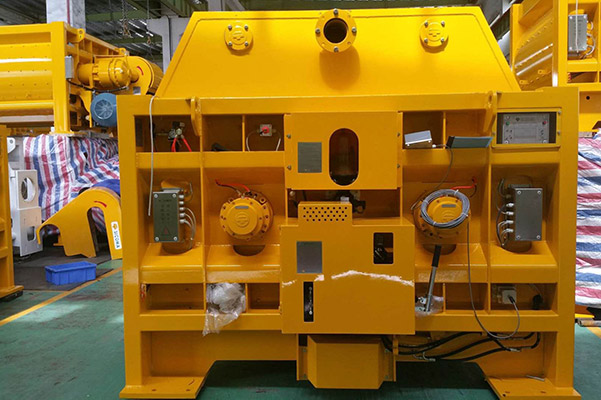

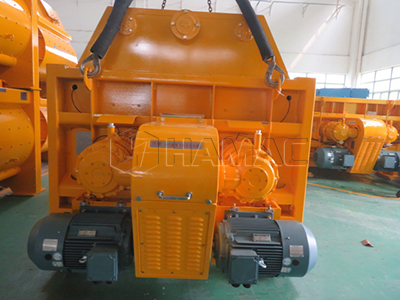

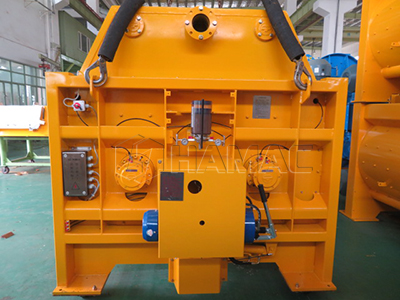

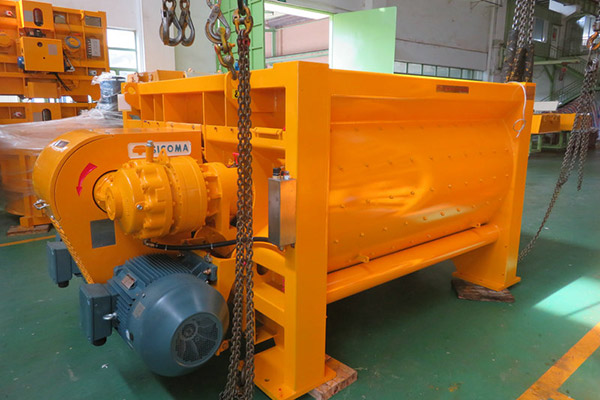

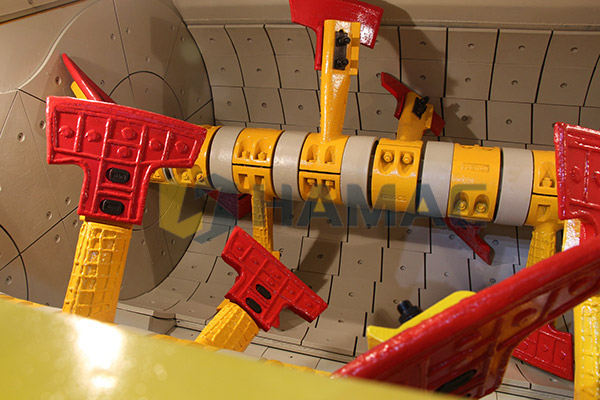

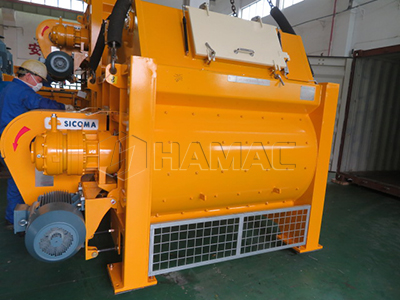

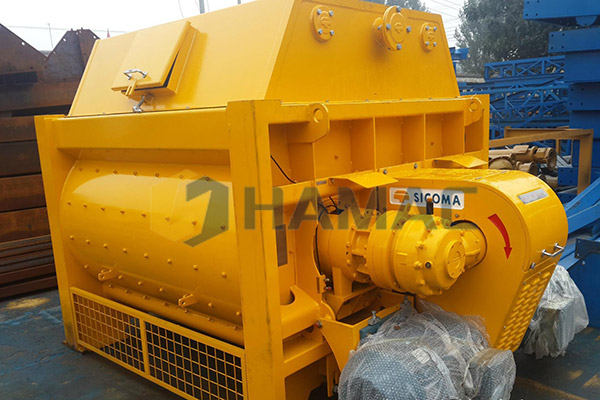

Подробные фотографии

FEEDBACK

Спектакль

1. Equipped with multi stages shaft seals or Air purged multi seals to enhance bearing life and effectively avoid slurry leakage.
2. Equipped with manual lubrication pump.
3. Unique monitoring system to monitor the running conditions of gearbox, hydraulic door opening and lubrication pump.
4. Watering curtain at top cover to ensure fast and thorough mixing.
5. Easy maintenance, spare parts at reasonable price, high ratio between the performance and the price.
6. Heavy duty design, stable operation. Capacity ranged from 0.75 cu.m. to 6.0 cu.m.

Производственный процесс

The excellent performance is recognized in the several application fields, in the Concrete Industry as well as Industrial Plants (waste treatment, chemical industry, glass industry). Depending on the type of application, all mixers can be equipped with several accessories and customized with many add-ons in order to achieve specific productivity, mixing quality and life expectancy requested in a certain field.

Application industry: Concrete / Cement Products (Blocks, Pavers, Curbstones, Sleepers, Pipes, Rings), Precast Elements (Beams, Hollow Core, Safety Barriers, Wall Panels) ,Dam Construction, Road Paving, Industrial Floors, Architectural Precast, Waste Treatment, Foundries, Glass Industry, Mine Industry (muds treatment, backfilling),Soil Stabilization, Fertilizers

Type of Mixed Product: Ready-mix concrete, Precast Concrete, Dry Cast, Roller Compacted Concrete (RCC), Self-Compacting Concrete (SCC), Fiber Reinforced Concrete, Lightweight Concrete, Backfilling, Inertization

Please Contact Us for your specific application – We provide solutions for each application.

Спецификация

Model	Dry Filling Capacity(L)	Compact Concrete(L)	Scraper	Motor Power(kW)	Weight(T)
MAO2250/1500	2250	1500	12	2×30	6.5
MAO3000/2000	3000	2000	16	2×37	7.5
MAO4500/3000	4500	3000	18	2×55	9.2
MAO6000/4000	6000	4000	22	2×75	11.8
MAO6000/4500	6000	4500	24	2×75	12.2
MAO7500/5000	7500	5000	20	2×90	15
MAO9000/6000	9000	6000	24	4×55	18
MSO1500/1000	1500	1000	12	2×18.5	5.05
MSO1750/1250	1750	1250	12	2×22	5.13
MSO2250/1500	2250	1500	14	2×30	5.62
MEO1250/750	1250	750	10	2×18.5	4.3
MEO1500/1000	1500	1000	10	2×18.5	4.4
MEO3000/2000	3000	2000	16	2×37	6.9
