2cbm Concrete Mixing Truck

Введение продукта

2cbm Concrete Mixing Truck is equipped with all-steel radial tyre as standard, which features high loading capacity, low rolling resistance, nice wear resistance, and good puncture-proof performance. The concrete mixer machine transportation tank mix tube and 4.5 T dump truck chassis with 2 u-bolt and special mat iron can be firmly installed one ,and form the concrete transport tank.the main use is to transport mixtrue concrete to destination on time and quickly.this tank also can be used as mixing drum.

hamacchina
0086-371-86525099
sales@hamacchina.com
0086-15136236223

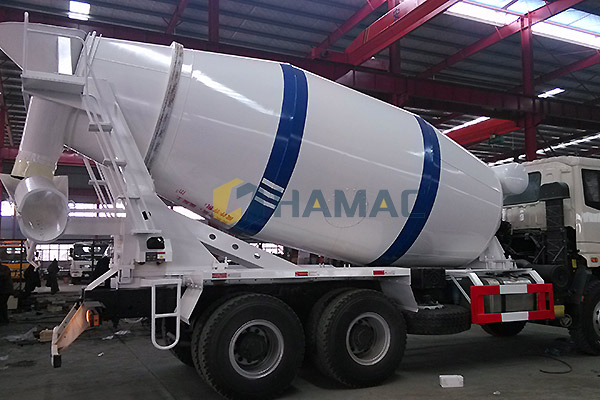

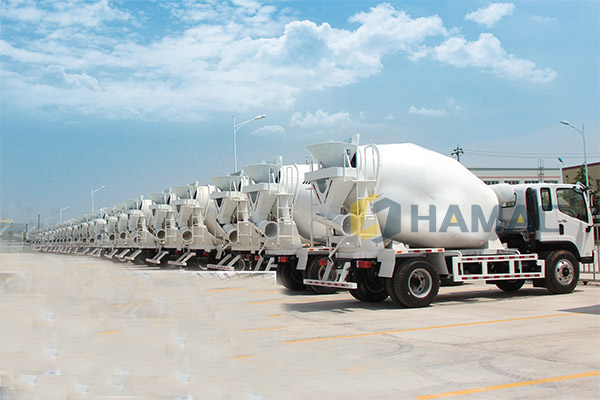

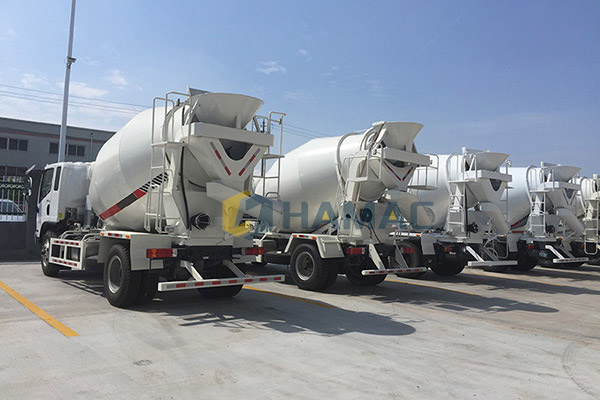

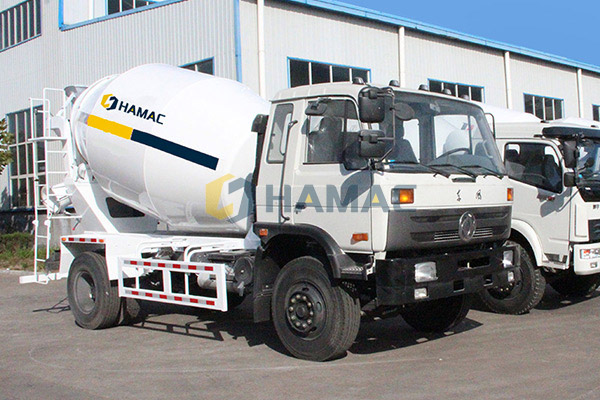

Подробные фотографии

FEEDBACK

Performance

2cbm Concrete Mixing Truck is strong well designed equipment meant for transporting concrete / mortar from concrete batching plant directly to the place where it is to be poured, effectively delay concrete coagulations, avoid concrete stratification and eduction, and ensures construction quality and speed.

2cbm Concrete Mixing Truck has a wide range of application especially for mass concreting works like Construction of Canals, Bridges, Highways, Dams, Multistoried & Industrial Buildings, Factories, and Airports for ready mixed Concrete Works.

1. Principal components of the concrete mixer truck
(1) Hydraulic System: hydraulic pump, hydraulic motor.
(2) Drivetrain System: reductor.
(3) Control System.
(4) Mixing System.
(5) cleaning system.

2. Advantages of concrete mixer truck
(1) High-intensity drum material.
(2) featuring better wear-resistance and long service life.
(3) Germany IFM sensors
(4) low material residue.
(5) High-quality parts.
(6) Excellent performance and convenient operation.
(7) Imported original hydraulic system(Bosch Rexroth Brand).
(8) PMP or CF reducer

Manufacturing Process

Specification

We are professional on producing the various types of concrete mixing truck. We choose the famous truck factories as our partners to provide us with the reliable chassis. Especially our small model mixing truck, it is suitable for some scale projects.

Technical data of 2cbm
Name	2cbm mixing truck	Model of engine	LD km138h
Chassis model	WI 1710 series	Engine type	Forced circulation cooled
Total weight (kg)	2580	Engine displacement (L)	1.38
Dimension LWH(mm)	530016502600	Engine power (kW)	18.38
Wheel base(mm)	2450	Max. standard engine speed(r/min)	2200
Front overhang(mm)	1100	Barrel geometric volume (m³)	2.3
Rear overhang(mm)	1800	Max. mixing volume (m³)	2
Max. gradeability(degree)	25	Feed rate (m³)	≥0.5
Max. speed(km/h)	≤50	Discharge rate (m³)	≥0.8
Turning diameter (m)	≤15	Max. rotate speed (r/min)	6-10
clutch	double dry type clutch	Barrel slope (°)	13.14
Transmission type	Belt type	Diameter of mixing barrel (mm)	Φ1400
Drive mode	rear wheel drive	Gear box	Ky67-3-c
Steering mode	Steering wheel	Hydraulic pump	50 gear pump
Service brake	Single pipeline rear brake	Hydraulic motor	gerotor motor
Parking brake	Mechanical rear brake	Water tank volume (L)	62
Tyre	650-16	Water supply way	Air pressure
