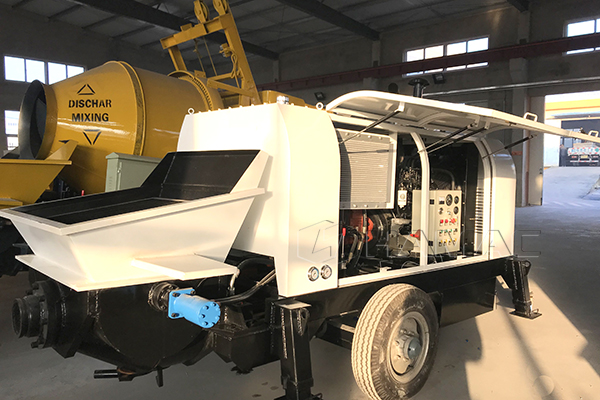

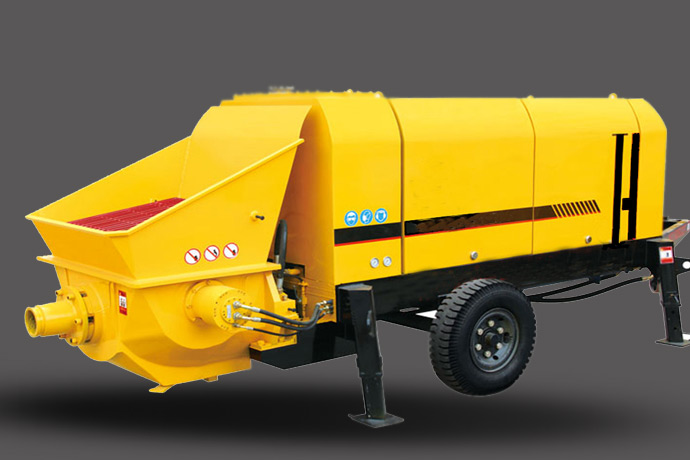

HBT/DHBT series Concrete Pump

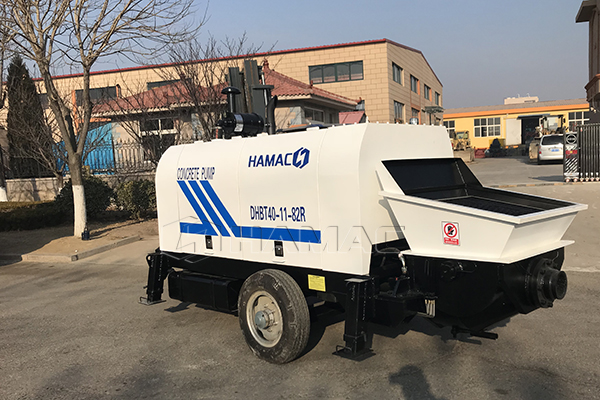

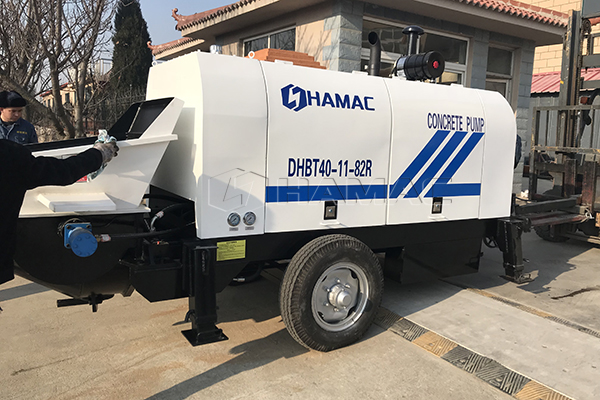

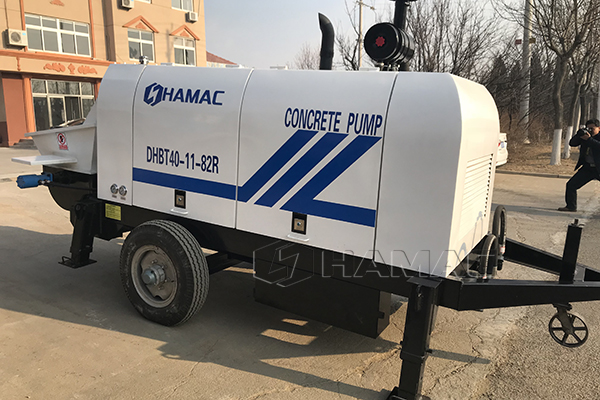

Подробные фотографии

FEEDBACK

Performance

1. Radiator: adopts the air-cooled plate-fin radiator to ensure that the system could operate in a maximum temperature allowed.

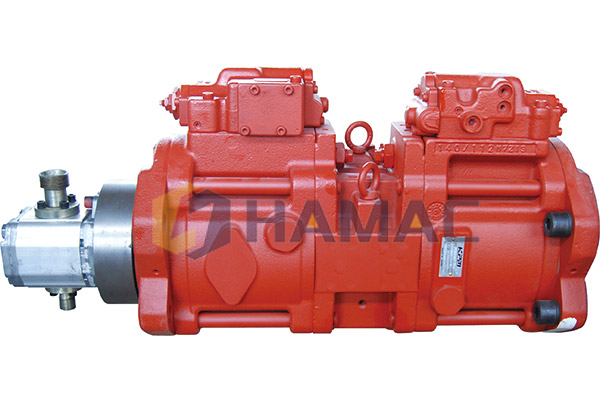

2. The main oil pump: adopts the German Hawe / Rexroth / Japanese Kawasaki series.
3. Lubrication system: adopts the automatic multi-point lubrication technology featuring one to one lubrication with better efficiency and the extending service life of wearing parts.
4. Power system: the power of motor series uses the well-known domestic and foreign brands: Yantai motor, Qingdao motor, Siemens Beide motor.

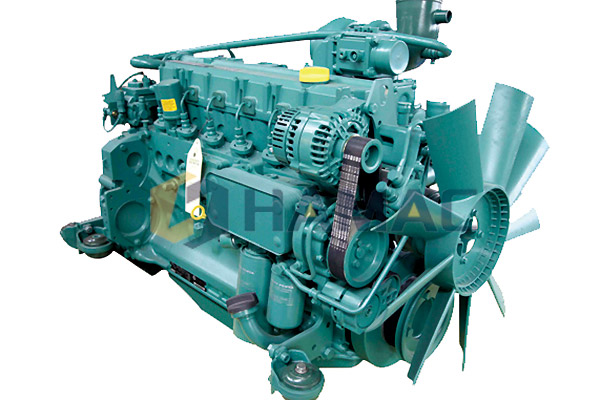

5. Diesel Series: power system employs the Lovol or Deutz diesel engine;

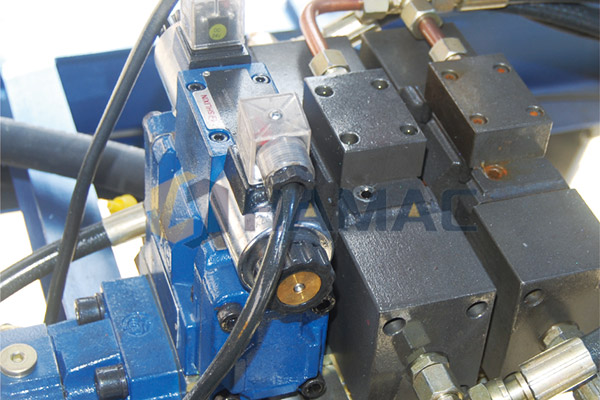

6. Electrical parts: the main electrical products adopts Schneider , LG products to the reliability of the electronic control system.
7. Hydraulic Hose Fittings: adopts the US Eaton products to ensure the safety of the hydraulic system, no leakage.
8. Large cylinder seals: Large cylinder seals adopts the US Parker products.
9. S valve: employing the manganese steel overall casting, the wearing surface adopts wear-resistant materials featuring the dual advantages of pressure and abrasion resistant.
10. Glasses plate cutting ring: glasses plates and cutting ring inlaid adopts the carbide hard to ensure a durable design.
11. Pistons: adopts the imported materials and precision machining, with excellent qualities: hydrolysis resistance, wear resistance and high temperature resistance.

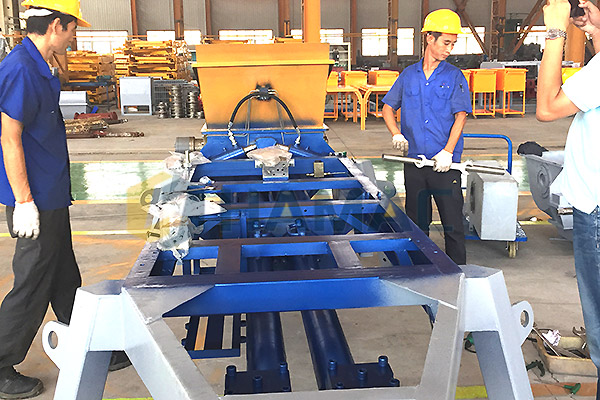

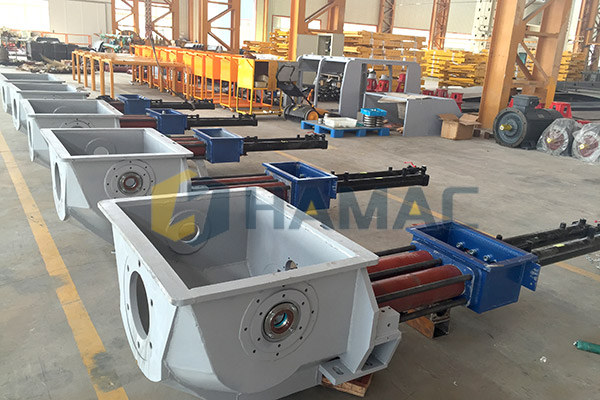

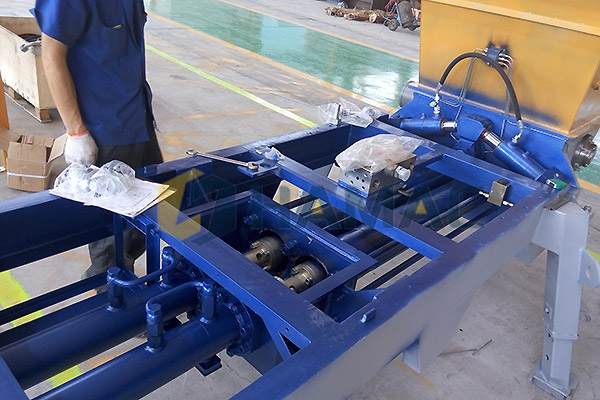

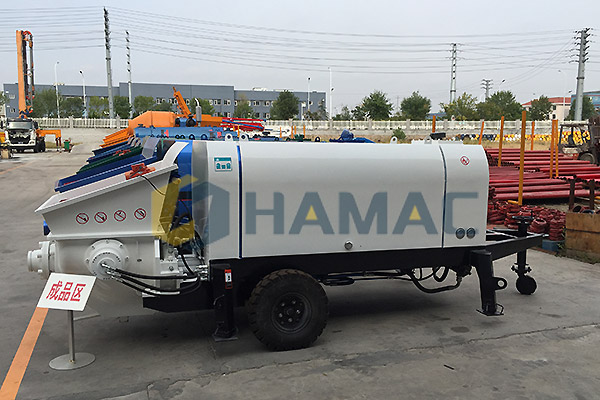

Manufacturing Process

Specification

Electromotor concrete pumps:

Item			Unit	S valve concrete pomp
				HBT40		HBT50		HBT60S-9	HBT60S-13	HBT60S-16	HBT80S-13	HBT80S-16
Theoretic concrete delivery volume		Low pressure	M3/h	40		50		60	60	60	60	60
		High pressure	M3/h	/		/		36	36	35	47	46
Concrete delivery pressure		Low pressure	Mpa.	/		/		5.7	7.6	9.6	7.6	9.6
		High pressure	Mpa.	10		12		9	12.5	15.7	12.5	15.7
Hydraulic pressure			Mpa.	25		28		26	32	32	32	32
Electric motor speed			r/min	1480
Main oil pump			Original German Hawe, Rexroth series or Japanese Kawasaki
Main cylinder dia./pole dia.× stroke			mm	100/70x1000	125/80×1200		125/80×1650		125/80 ×1650	140/900 \|×1650	125/80 ×1650(1800)	140/900 ×1650(1800)
Diameter of delivery cylinder			mm	160			200
Electric motor power			kW	45	55		75		90	110	110	132
Capacity of hydraulic oil tank			L	200	240		500
Hopper capacity			M3	0.45	0.6
Overall weight			Kg	3200	3500		6000		6000	6200	6200	6500
Max. delivery distance	Vertical		m	120	150		150		180	250	180	250
	Horizontal		m	300	350		600		700	1000	700	1000

Diesel engine concrete pumps:

Item	Unit	DHBT40S-10-56	DHBT50S-10-56	DHBT60S-13-130	DHBT60S-16-140	DHBT80S-13-140	DHBT80S-16-176	DHBT80S-18-195
Theoretical capacity	m³/h	36	45	60	60	80	80	80
Delivery pressure	Mpa	10	10/13	12．5	15.7	12．5	15.7	18
Max. Pump Times	times/min	24	20	22	22	23	26	26
Delivery height	m	150	150	180	240	180	240	240
Delivery distance	m	400	400	500	600	500	600	600
Distribution valve type		S tube valve	S tube valve	S tube valve	S tube valve	S tube valve	S tube valve	S tube valve
Delivery cylinder type	mm	Φ160×1200	Φ200×1200	Φ200×1650	Φ200×1650	Φ200×1650	Ф200×1800	Ф200×1800
Main Oil Pump	mm	Φ100/Φ70×1200	Φ125/Φ80×1200	Φ125/Φ80×1650	Φ140/Φ90×1650	Φ125/Φ80×1650	Ф140/90×1800	Ф150/90×1800
Oil Tank capacity	L	300	300	500	500	500	420	420
Hopper capacity	L	400	600	600	600	600	600	600
Filling height	mm	1400	1400	1400	1400	1400	1400	1400
Outlet diameter	mm	Φ125	Φ185	Φ185	Φ185	Φ185	Ф185	Ф185
Delivery pipe inner diameter	mm	Φ125/Φ100	Φ125	Φ125	Φ125	Φ125	Ф125	Ф125
Engine power	Kw	56	56	130	145	145	176	176
Rated Spped	r/min	2200	2200	2300	2300	2300	2300	2300
Idling speed	r/min	800	800	800	800	800	800	800
Voltage	V	24V	24V	24V	24V	24V	24V	24V
Fuel tank	L	150	150	150	150	150	150	150
Hydraulic oil-way type		Open	Open	Open	Open	Open	Open	Open
Max. oil pressure	MPa	25	25	32	32	32	32	32
Max. oil pressure for mixing system	MPa	14	14	14	14	14	14	14
Max. mixing speed	r/min	24	24	24	24	24	24	24
slump	mm	80～200	80～200	80～200	80～200	80～200	80～200	80～200
Maximum aggregate size	mm	≤30（≤20）	Pebble 50, aggregate 40	Pebble 50, aggregate 40	Pebble 50, aggregate 40	Pebble 50, aggregate 40	Pebble 50, aggregate 40	Pebble 50, aggregate 40
Overall Dimension	mm	4970×1680 ×2580	5270×1860 ×2580	6600×1930 ×2190	6600×1930 ×2190	6600×1930 ×2190	6600×1930 ×2190	6600×1930 ×2190
Wight	Kg	3400	4000	6300	6500	6800	7000	7800
Towing speed	Km/h	≤8	≤8	≤8	≤8	≤8	≤8	≤8
