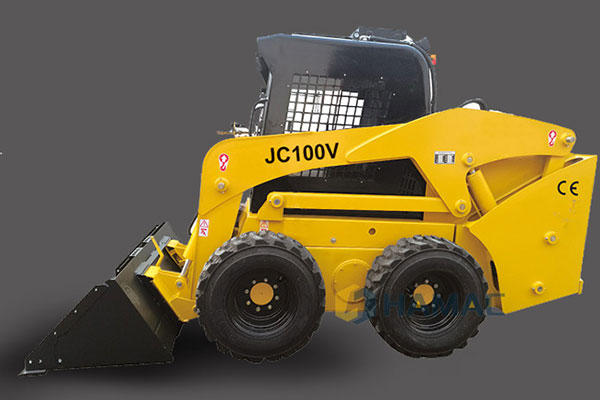

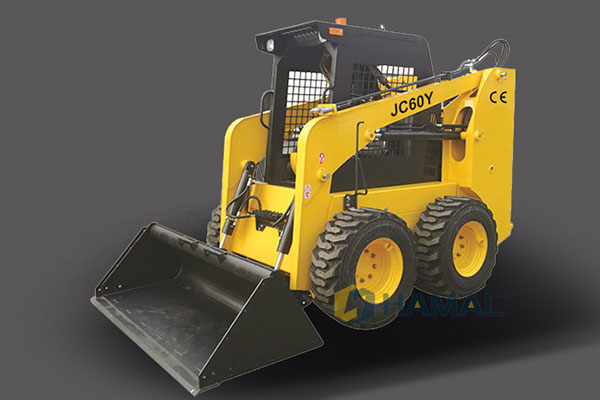

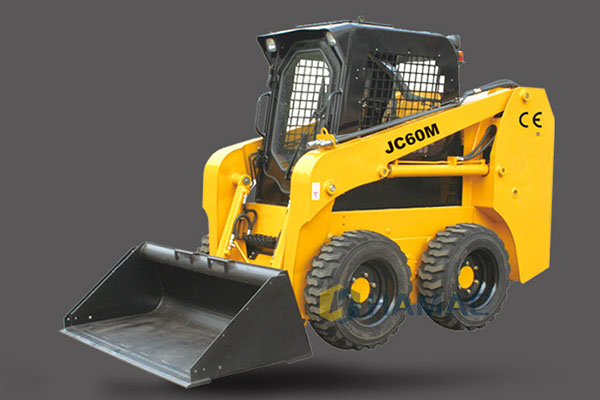

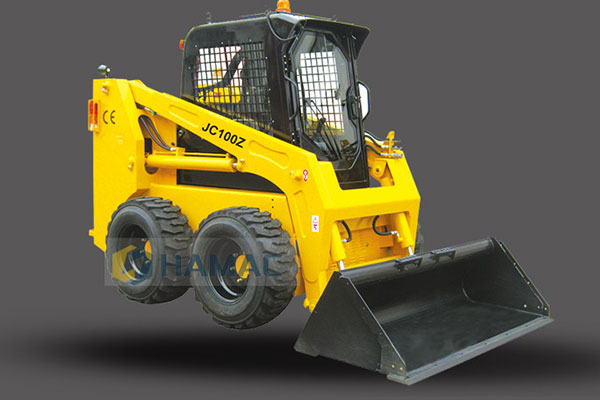

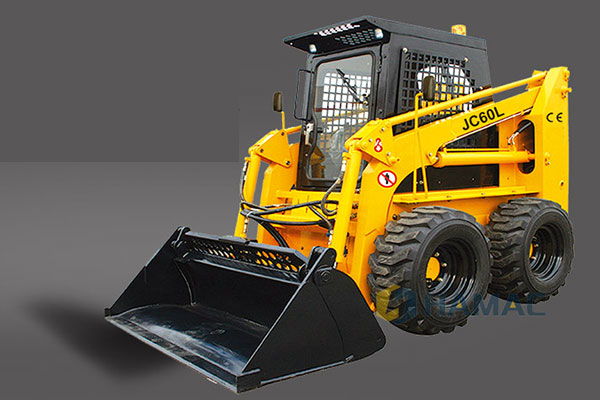

L series Wheeled Skid Steer Loader

Вступление

L series Wheeled Skid Steer Loader is a new generation of small multi-function equipment integrating mechanics, electronics and hydraulics under the independent research and development of HAMAC, with every performance index having reached the international advanced level. The machine features compact structure, flexible movement, convenient operation, efficient working, powerful function and simple maintenance. It is especially applicable to urban infrastructure, roads or construction sites, workshop, warehouse, dock, ship deck, even inside of cabin and other places with narrow space and frequently-changed operational contents. By changing different devices, it realizes the shoveling and carrying, lifting, digging, drilling, crushing, scraping,scarification, snow blowing, deicing, road sweeping, pavement milling, and compaction operation.

hamacchina
0086-371-86525099
sales@hamacchina.com
0086-15136236223

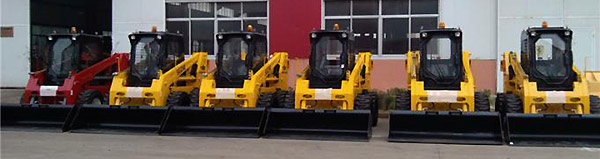

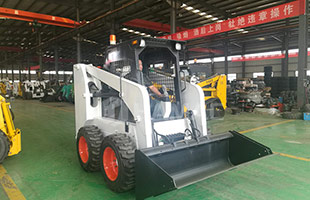

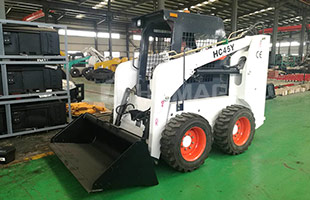

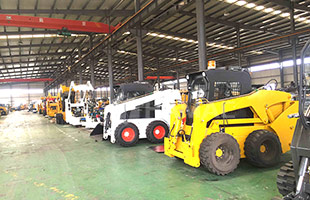

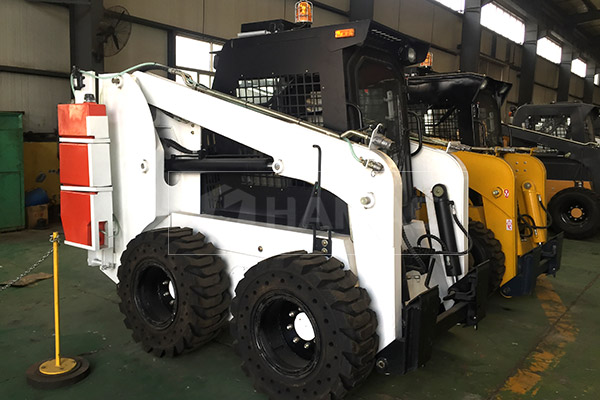

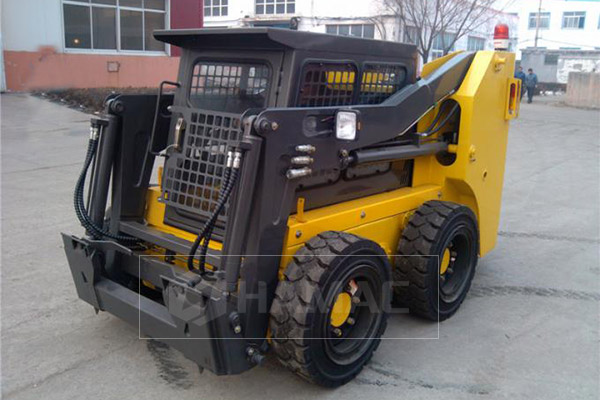

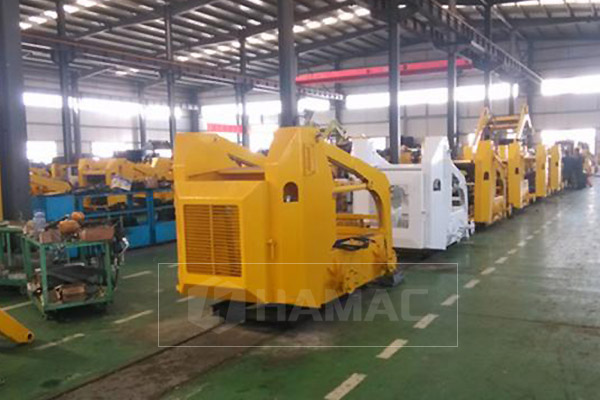

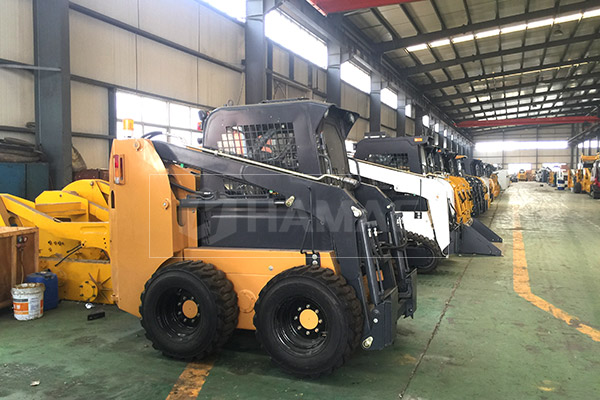

Подробные фотографии

FEEDBACK

Спектакль

1. The body uses mechanical balancing system. Above the manipulator arm, there equipped with pull-rod and rocker arm, which helps keeping the bucket balanced when the manipulator arm is working.
2. The body is in light-weight design. The overall weight is less than 3000kg.

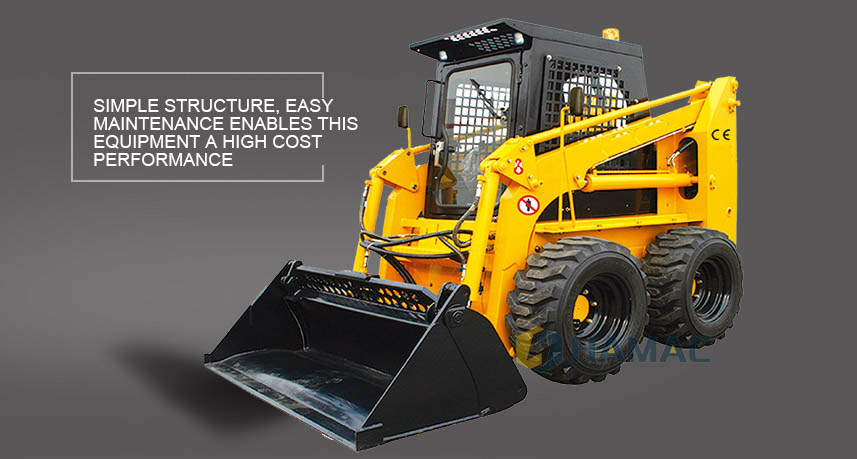

3. It adopts mechanical pull-rod system. Simple structure, easy maintenance enables this equipment a high cost performance.

Навесное оборудование с бортовым поворотом

Навесное оборудование с бортовым поворотом предлагает обширную, постоянно растущую линию высококачественных навесных погрузчиков для строительной и сельскохозяйственной техники.

Combination Bucket

Pallet Forks

Dozer Blade Grader Leveler

Snow Pusher

Grapple Bucket

Grapple Rake

Bale Squeeze

Grapple Rock Bucket

Hay Spear

Mixer

Digging Backhoe

Utility Digging Backhoe

Pick Up Broom

Tree Spade

Get all the Skid Steer Loader Attachments

Решения с бортовым поворотом удовлетворят все ваши потребности в шнековом поворотном шнеке, начиная от приводов и заканчивая комплектующими. Ознакомьтесь с каждым из наших вариантов шнека сегодня и удивитесь всему, что может сделать для вас навесное оборудование шнекового погрузчика.

Спецификация

Model	HC45L	HC60L
Operating Load (kg)	700	850
Max. Speed (km/h)	12	12
Hydraulic flow (L/min)	62.5	75
Tire Model	10-16.5	12-16.5
Rated Power (kW)	37	45
Fuel tank Volume (L)	60	60
Self Weight (kg)	2600	3000
Bucket Volume (m³）	0.4	0.45

Structure Data:

Main data/Model	HC45L	HC60L
Overall operating height (mm)	3670	3690
Height to bucket hinge pin (mm)	2900	2920
height to top of cab (mm)	2030	2050
Height to bottom of level bucket(mm)	2733	2753
Overall length without bucket(mm)	2450	2630
overall length with bucket(mm)	3200	3380
Dumping angle at maximum height(° )	40	40
Dumping height(mm)	2380	2400
Dumping reach(mm)	700	750
Rollback o bucket on ground(° )	30	30
Rollback of bucket at full height(° )	104	104
Wheelbase(mm)	991	991
Ground clearance(mm)	185	205
Angle of departure(° )	20	20
Front turning radius without bucket(mm)	1168	1198
Front tuning radius(mm)	1958	1958
Rear tuning radius(mm)	1630	1728
Rear axle to bumper (mm)	1108	1208
Tread width, centerline to centerline (mm)	1450	1500
Width (mm)	1720	1800
Bucket width (mm)	1740	1820
