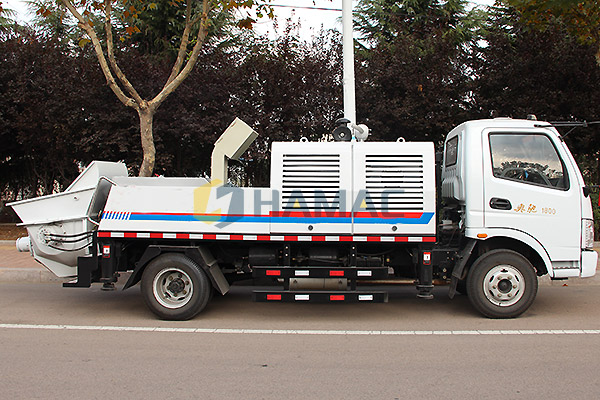

Truck Mounted Concrete Pump

Введение продукта

Combined our concrete pump with the high quality chassis, Hamac design the new generation of truck mounted concrete pump include the advantages of our concrete pump and our pump truck. Its working performance is reliable, structure is perfect, operation is easy.

hamacchina
0086-371-86525099
sales@hamacchina.com
0086-15136236223

Подробные фотографии

FEEDBACK

Performance

Power system: Adopt original VOLVO/DUETZ and LOVOL diesel engine;

Main oil pump: Adopt HAWE series or Rexroth series from German, Kawasaki series from Japan. Mainly we use variable displacement piston pump to make sure the stable reliable working performance. Because of the pressure exceeding and overflow function, the main oil pump and diesel engine will be protected successfully;

Chassis: We adopts the Dongfeng chassis from the biggest truck factory in China. Its quality is reliable. Its emission standard is National IV.

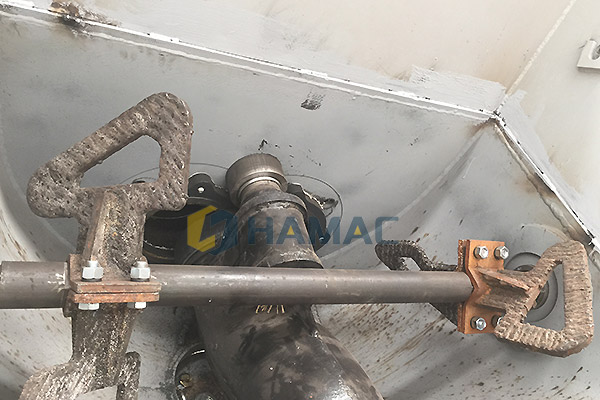

The high material sucking technology: Optimized inner wall of hopper, smooth S tube valve, and accurate blade angle ensure the concrete is sucked into the concrete cylinder, improving the efficiency to more than 90%;

Large diameter of concrete delivery cylinder: The diameter of concrete delivery cylinder is enlarged to 230mm, reduce the upward and backward wearing times of concrete pistons, lengthened the service lift of concrete pistons.

High quality wear resistance parts: Integration of German technology and advanced technology, ken mechanical friction rotating components’ service life greatly improved, with unique lubricating device, mechanical rotation reaches maintenance-free state.

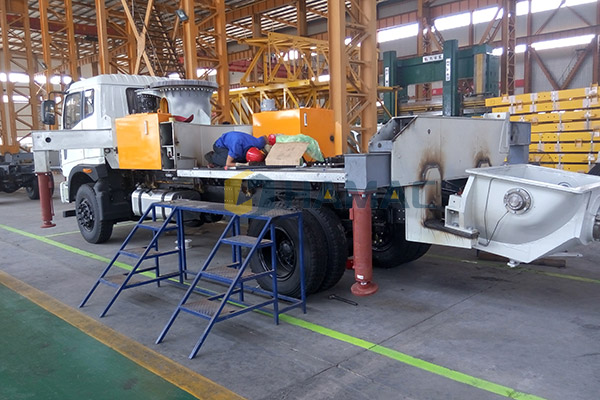

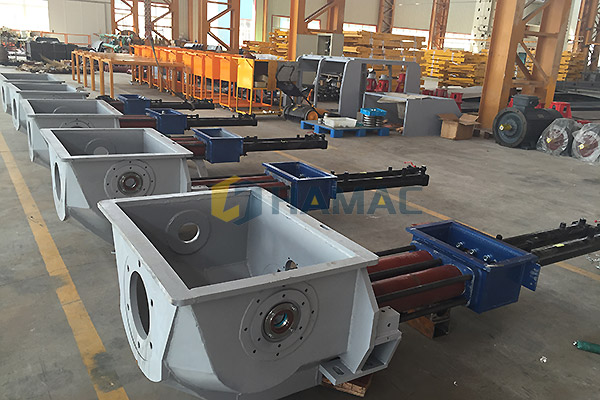

Manufacturing Process

Specification

ITEM			UNIT	SPECIFICATION
Model				HMC5141THB
Driving system	Chassis brand			FOTON DAIMLER, left drive
	Chassis model			BJ1113VFPHG-RA
	Fuel type			Diesel
	Displacement/Power		L/KW	6.7/156
	Displacement standard			Euro III
	Tyre model			8.25R20
	Axle base		m	5.0
	quantity of axles			2
	Max. driving speed		Km/h	90
	Front wheel base		mm	1900
	Back wheel base		mm	1800
	Min. turning radius		m	9
Pumping system	Brand of diesel engine			DEUTZ Brand
	Diesel engine model			BF6M1013-25T3R
	Diesel engine power		KW	186
	Driving mode			Hydraulic driving
	Oil cylinder inner diameter × stroke		mm	Ф180×Ф125×1800
	Concrete cylinder inner diameter × stroke		mm	Ф230×1800
	Oil pressure of system		MPa	32
	Switch of H-pressure and L-pressure			Equipped
	Fuel tank capacity		L	290
	Oil tank capacity		L	600
	Cooling mode of hydraulic system			Fan cooling
	Max. theoretical capacity		m3/h	H-pressure	55
			m3/h	L-pressure	100
	Pumping distance (H-pressure)	Max. Horizontal	m	125A pipe	880
		Max. Vertical	m	125A pipe	220
	Hopper capacity		m3	0.6
	Feeding height		mm	≤1500
	Concrete slump		cm	14～23
	Max. aggregate diameter		mm	Crushed stone: 40 / Pebble: 50
	Valve			S Valve
	Water pump for cleaning			Equipped
	Concrete pipe cleaning mode			Water cleaning
	Water tank capacity		L	400

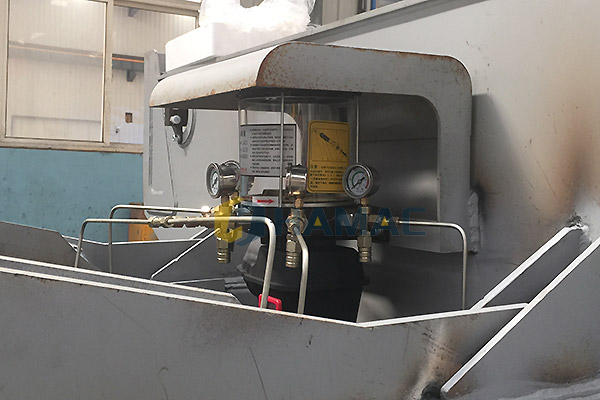

	Lubrication mode			Automatic
Overall dimension	Length (mm)Width (mm)Height (mm)		mm	919524582623
Full-load total weight			Kg	13500
