Skip hoist type Concrete Batching Plant
Введение продукта
Skip hoist concrete batching plant is a plant which is forced and high efficiency, it is an ideal equipment to produce the concrete which is used to produce plastic concrete, dry concrete and so on. Because of its high efficiency, it is being widely used in big and medium scale construction project, road and bridge, and the factories which produce the pre-fabricated concrete component.
- hamacchina
- 0086-371-86525099
- sales@hamacchina.com
- 0086-15136236223

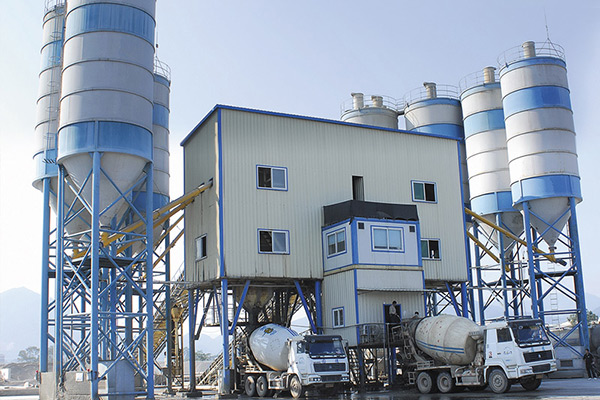

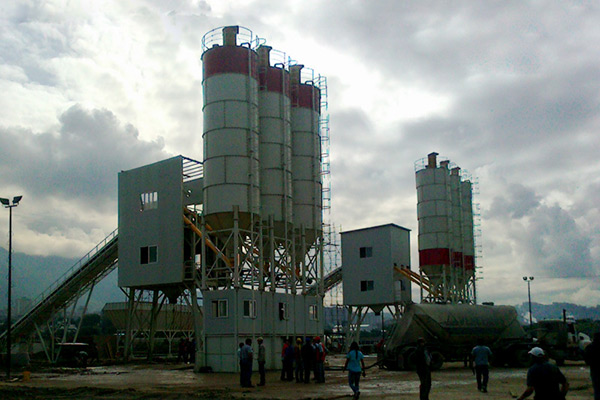

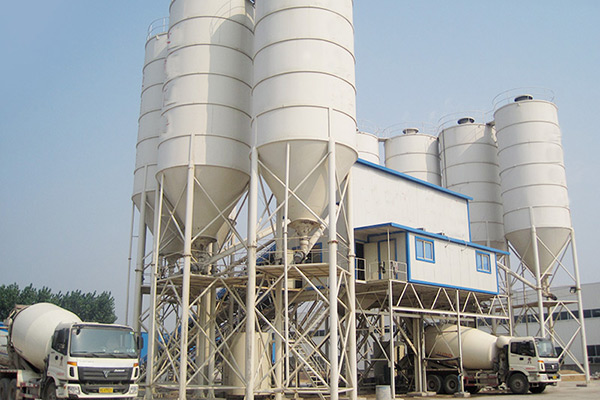

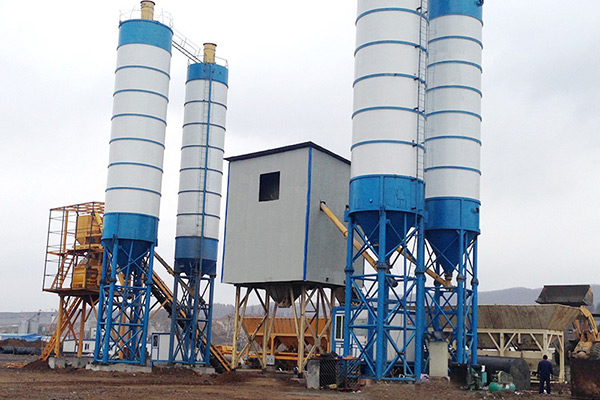

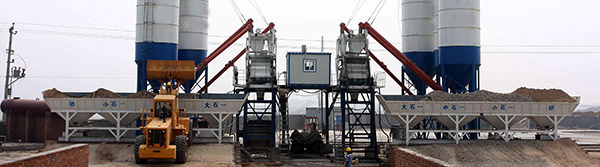

Подробные фотографии
Performance
1. Skip hopper feeding system, cost effective. It will occupy small area than the belt conveyor type;
2. Adopt twin horizontal shaft forced type concrete mixer, it adopts two heavy duty gear box, electrical lubrication system, hydraulic discharge system, durable mixing device, etc.
3. Excellent environmental protection, dust collection system and anti-noise design.
4. Accurate weighing system (aggregate, cement, water, additive).
5. PC+PLC control, vividly display the production process on the screen, so that the operator can monitor in real time; save the data of production perimeters in the computer, print daily, monthly or yearly statistic reports of production.

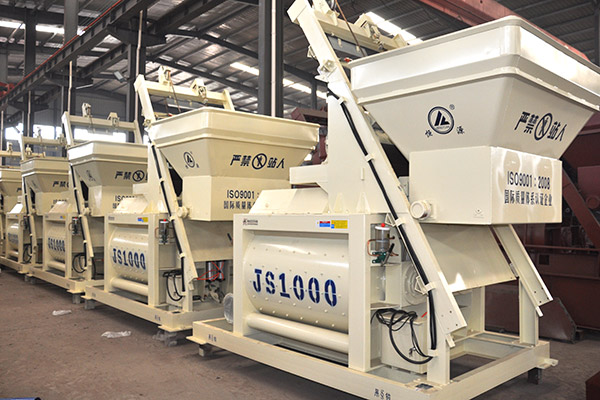

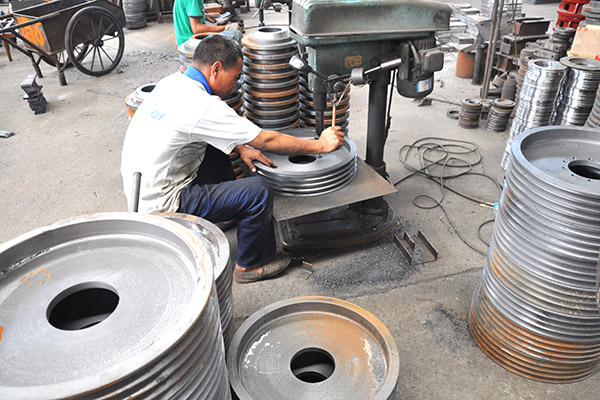

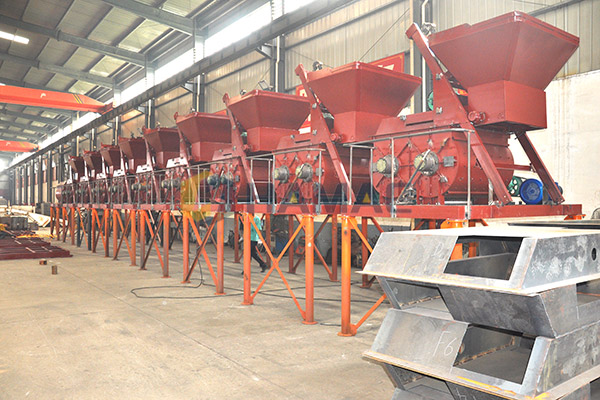

Manufacturing Process
Specification
| Type | HZS25 | HZS35 | HZS50 | HZS75 | |
| Theoretical production capacity(m³/h) | 25 | 35 | 50 | 75 | |
| Concrete mixer | Type | JS500 | JS750 | JS1000 | JS1500 |
| Power(KW) | 24.75 | 38.6 | 51 | 65.5 | |
| Discharging capacity(L) | 500 | 750 | 1000 | 1500 | |
| Aggregate size(Pebble/Macadam)(mm) | 80/60 | 80/60 | 80/60 | 80/60 | |
| Aggregate Bin volume(m³) | 2/3×3.2 | 2/3/4×7.3 | 2/3/4×8.3 | 2/3/4×12 | |
| Weighing Accuracy | Aggregate (KG) | 1500Kg ±2% | 2200Kg ±2% | 3000Kg ±2% | 4500Kg ±2% |
| Cement(KG) | 300Kg ±1% | 450Kg ±1% | 600Kg ±1% | 1500Kg ±1% | |
| Fly ash(KG) | 400Kg ±1% | 600Kg ±1% | |||
| Water (KG) | 200Kg ±1% | 200Kg ±1% | 400Kg ±1% | 600Kg ±1% | |
| Additive(KG) | 30Kg ±1% | 50Kg ±1% | 50Kg ±1% | ||
| Discharging height(M) | 3.8 m | 3.8 m | 3.8 m | 4.1m | |
| Gross weight(T) | 10 | 15 | 40 | 50 | |
Note: Note: Our products are being updated constantly, all rights reserved by HAMAC.
