10cbm Concrete Mixing Truck

Введение продукта

10cbm Concrete Mixing Truck is equipped with all-steel radial tyre as standard, which features high loading capacity, low rolling resistance, nice wear resistance, and good puncture-proof performance. The concrete mixer machine transportation tank mix tube and 4.5 T dump truck chassis with 2 u-bolt and special mat iron can be firmly installed one ,and form the concrete transport tank.the main use is to transport mixtrue concrete to destination on time and quickly.this tank also can be used as mixing drum.

hamacchina
0086-371-86525099
sales@hamacchina.com
0086-15136236223

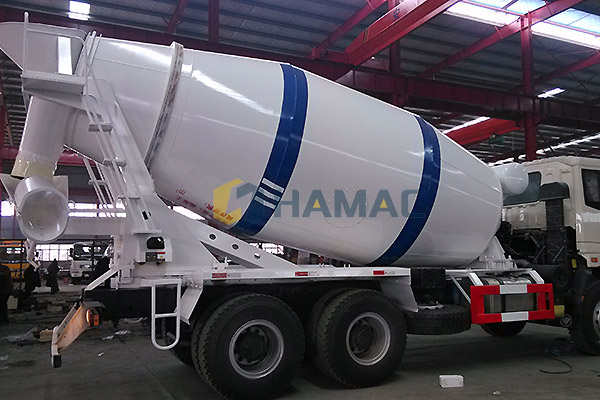

Подробные фотографии

FEEDBACK

Performance

1. The whole truck is convenient and stable with strong intensity. Sperical purpose chassis is specially designed for rural market, even narrow country road can be easily handled;
2. Concrete mixing tank with superior performance, optimized design of concrete mixing tank, improve loading ability, mixing on average without separation;
3. The blade has unique wear-resisting protection structure, improving blade service lift 80%;
4. The design of low angle of inclination. Center of gravity is lower than similar concrete transit mixer at 5%, safety factory higher 10%;

Manufacturing Process

Specification

Model: 10m3 Concrete Truck Mixer
Overall size (mm)	9230 (L)2496(W)3850 (H)
Tank body dimension(mm)	5370*2300
Mixing volume(m3)	10
Feeding speed（m3/min）	≥3
Unloading speed（m3/min）	≥2
Discharge residue rate (%)	≤0.5
High pressure oil pump	PV089MHR\20DBC13N, Italy
Hydraulic motor	MF089V\20CBN113535 , Italy
Reducer	PMB7asp
Water supply system	Water supply by air pressure (450L water tank), homemade sprinkler.
Air-condition	SINOTRUK special air condition
*Chassis (64)**
Manufacturer	SINOTRUK Motors. Ltd
Model	ZZ1257N3848W
Wheel base (mm)	3825+1350
Tread f/r (mm)	2022/1830
Max. Speed (km/h)	86
Steering system	Recirculating ball steering, power steering.
Transmission	Manual
Brake system	Dual circuit air-pressure braking system
Engine
Model	WD615.95E
Max. Power (hp)	336
Engine type	L6 , water cooling, supercharge, inter-cooler diesel engine
Fuel type	Diesel oil
