B series Wheeled Skid Steer Loader

Вступление

B series Wheeled Skid Steer Loader is a new generation of small multi-function equipment integrating mechanics, electronics and hydraulics under the independent research and development of HAMAC, with every performance index having reached the international advanced level. The machine features compact structure, flexible movement, convenient operation, efficient working, powerful function and simple maintenance. It is especially applicable to urban infrastructure, roads or construction sites, workshop, warehouse, dock, ship deck, even inside of cabin and other places with narrow space and frequently-changed operational contents. By changing different devices, it realizes the shoveling and carrying, lifting, digging, drilling, crushing, scraping,scarification, snow blowing, deicing, road sweeping, pavement milling, and compaction operation.

hamacchina
0086-371-86525099
sales@hamacchina.com
0086-15136236223

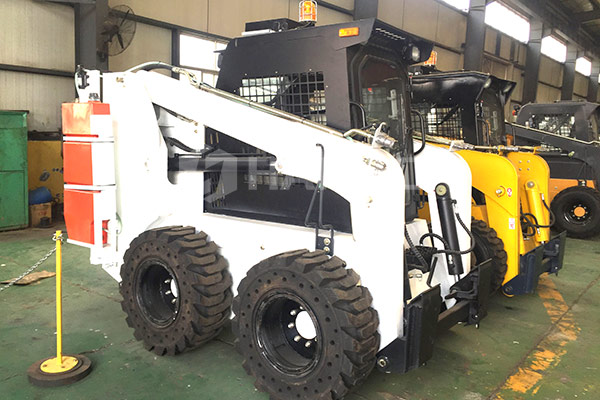

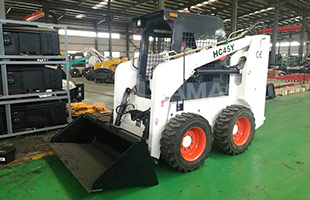

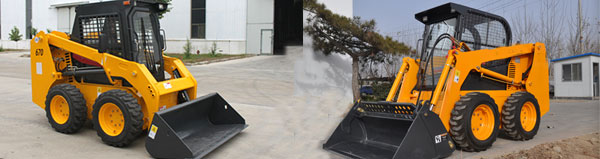

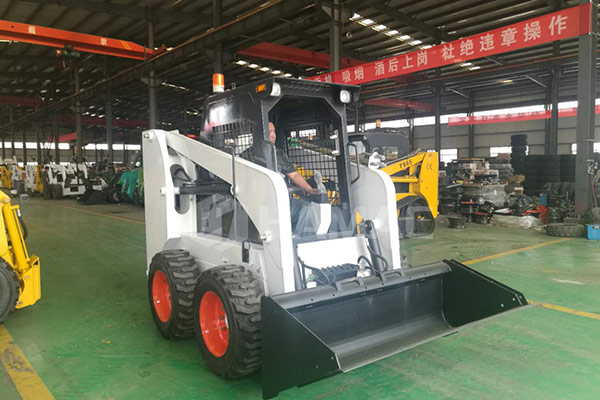

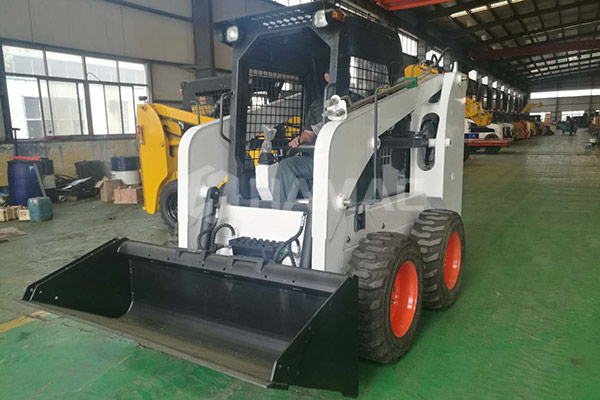

Подробные фотографии

FEEDBACK

Спектакль

1. High configuration for main parts. Main pump is Germany Rexroth high pressure viable plunger pump. The travel motor is Rexroth single-speed or two-speed motor. The engine is famous brand such as XINCHAI, Kubota or Perkins. The key hydraulic parts like gear pump, multi-way, pilot valve, leveling valve etc. are original products imported from Europe and America.
2. It adopts plate welding arm which has high loading capacity and good integral rigidity, long-term durability and reliability. The bucket cylinder can reach 100/50, and the maximum dig-up capacity is over 3 tons. The deluxe cab is very nice-looking and comfortable by using the blow molding interior decoration.
3. The pilot operation structure is our company patented technique. The controlling distance can be adjusted for different drivers’ requirement. The rear-mounted radiator uses rotational structure, which heavily improve the maintenance ability.

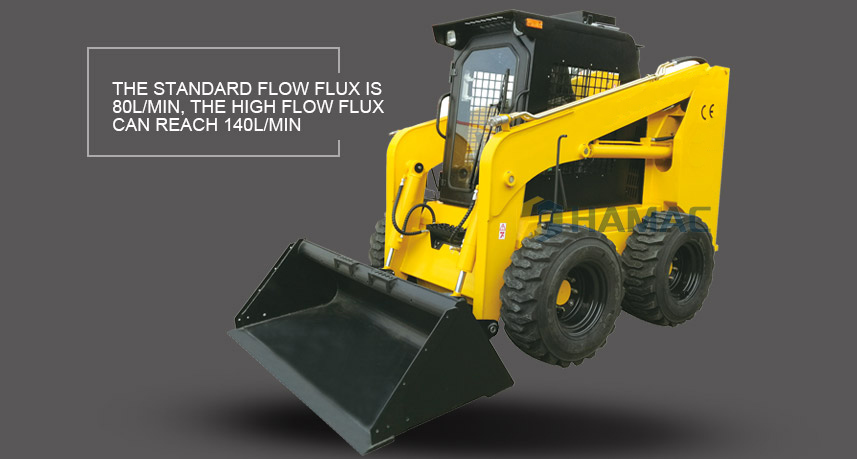

4. B series skid steer loader can provide high flow flux for attachments. The standard flow flux is 80L/min, the high flow flux can reach 140L/min. It can meet the demands of all the attachments.

Навесное оборудование с бортовым поворотом

Навесное оборудование с бортовым поворотом предлагает обширную, постоянно растущую линию высококачественных навесных погрузчиков для строительной и сельскохозяйственной техники.

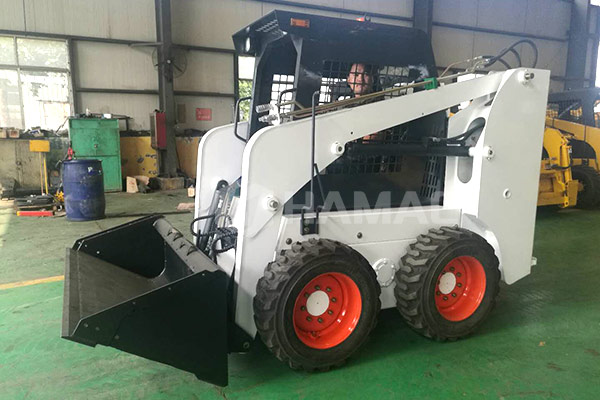

Combination Bucket

Pallet Forks

Dozer Blade Grader Leveler

Snow Pusher

Grapple Bucket

Grapple Rake

Bale Squeeze

Grapple Rock Bucket

Hay Spear

Mixer

Digging Backhoe

Utility Digging Backhoe

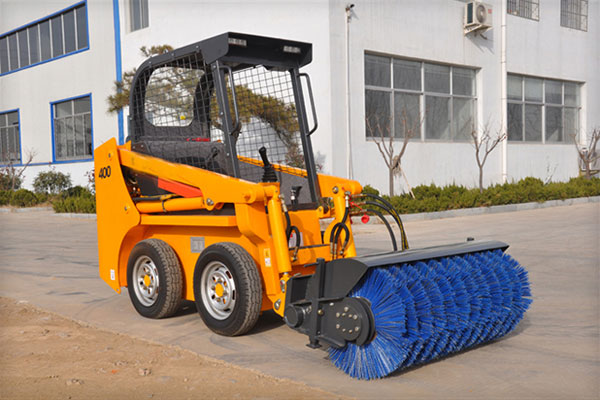

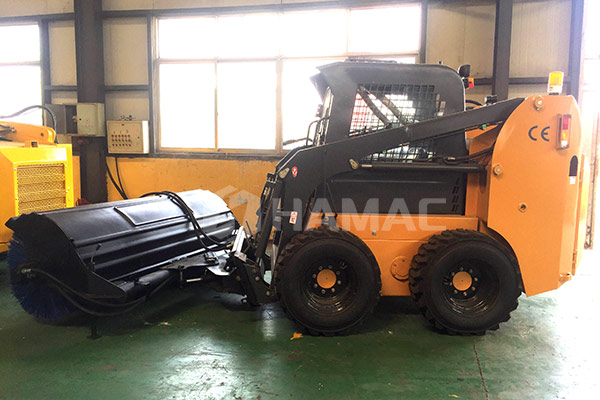

Pick Up Broom

Tree Spade

Get all the Skid Steer Loader Attachments

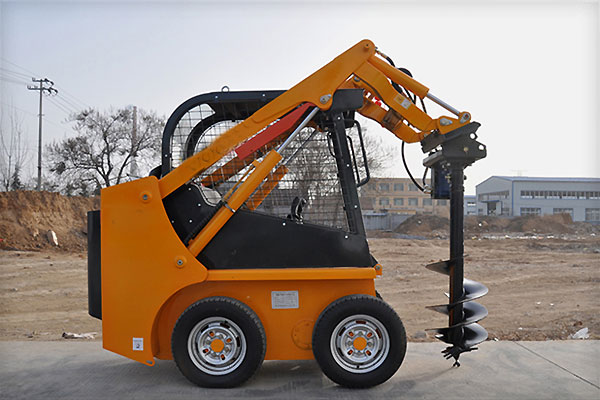

Решения с бортовым поворотом удовлетворят все ваши потребности в шнековом поворотном шнеке, начиная от приводов и заканчивая комплектующими. Ознакомьтесь с каждым из наших вариантов шнека сегодня и удивитесь всему, что может сделать для вас навесное оборудование шнекового погрузчика.

Спецификация

Model	HC65B	HC75B	HC100B	HC120B
Operating Load (kg)	950	1050	1200	1500
Max. Speed (km/h)	12	12	12/18	12/18
Hydraulic flow (L/min)	80	80	80	80
Max. Working Flow (L/min)		120	140	140
Tire Model	12-16.5	12-16.5	12-16.5	12-16.5
Rated Power (kW)	55	55	74	103
Fuel tank Volume (L)	75	75	90	90
Self Weight (kg)	3350	3500	3550	3600
Bucket Volume (m³）	0.5	0.5	0.55	0.55

Structure Data:

Main data Model	HC65B	HC75B	HC100B	HC120B
Overall operating height (mm)	4000	4070	4070	4070
Height to bucket hinge pin (mm)	3100	3150	3150	3150
height to top of cab (mm)	2160	2160	2160	2160
Height to bottom of level bucket(mm)	2933	2983	2983	2983
Overall length without bucket(mm)	2750	2880	2880	2880
overall length with bucket(mm)	3490	3580	3580	3580
Dumping angle at maximum height(° )	40	40	40	40
Dumping height(mm)	2400	2450	2450	2450
Dumping reach(mm)	750	700	700	700
Rollback o bucket on ground(° )	30	30	30	30
Rollback of bucket at full height(° )	104	104	104	104
Wheelbase(mm)	1085	1115	1185	1185
Ground clearance(mm)	205	205	205	205
Angle of departure(° )	20	20	20	20
Front turning radius without bucket(mm)	1204	1250	1278	1278
Front tuning radius(mm)	2030	2112	2144	2144
Rear tuning radius(mm)	1706	1774	1857	1857
Rear axle to bumper (mm)	1082	1082	1082	1082
Tread width, centerline to centerline (mm)	1500	1500	1500	1500
Width (mm)	1880	1880	1880	1880
Bucket width (mm)	1880	1880	1880	1880
