JZ series Concrete Mixer
JZ series Concrete Mixer
Введение продукта
JZC/JZM series concrete mixer is a self-falling concrete mixing machine which discharging with the double cone barrel rotating reversely. It mixes the material by rotating positively, and discharges by rotating reversely. It is suitable for the common construction, road and bridge, and prefabricated concrete parts factory.
- hamacchina
- 0086-371-86525099
- sales@hamacchina.com
- 0086-15136236223

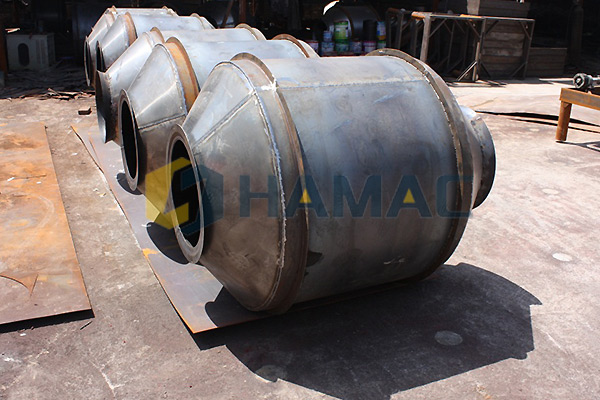

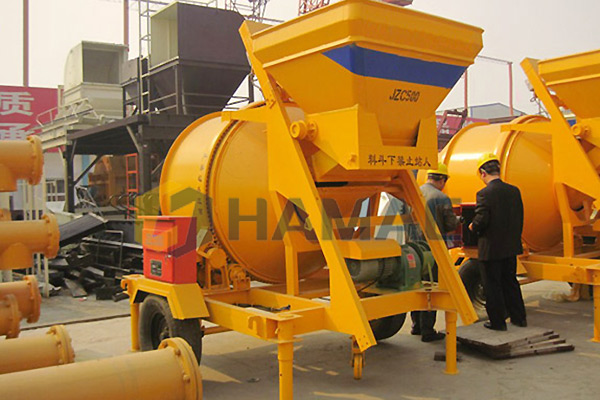

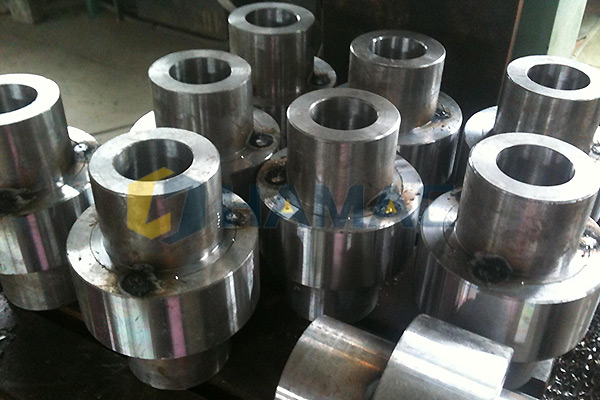

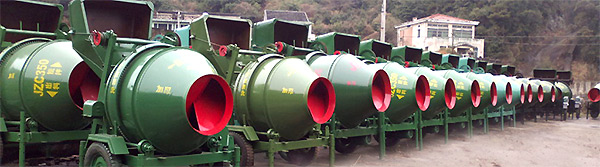

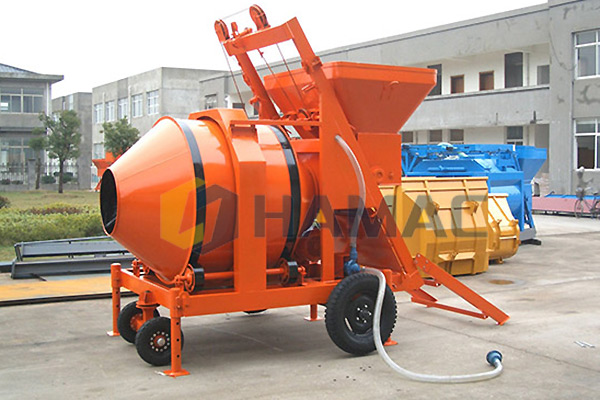

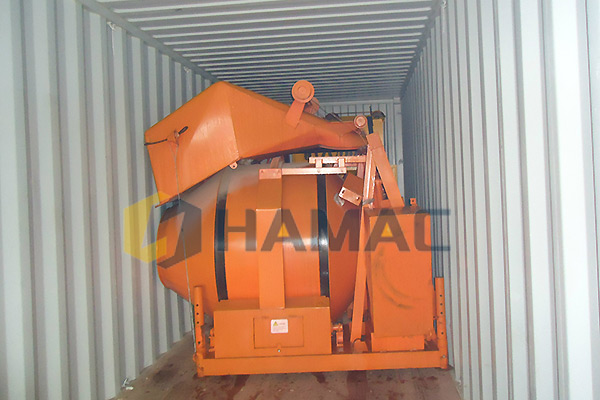

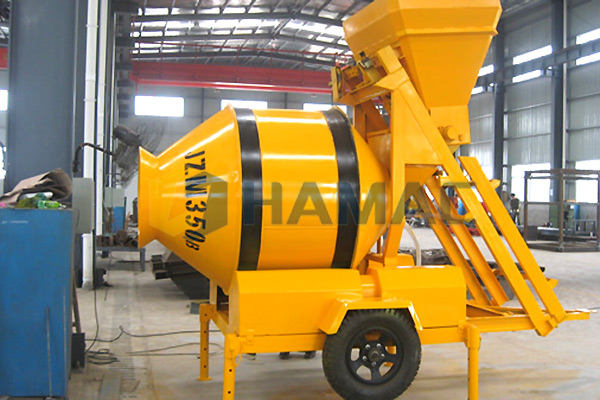

Подробные фотографии
Спектакль
1. Good performance;
2. High capacity;
3. Good-quality mixing;
4. Convenient to move;
5. Easy to operate and maintain;
6. Beautiful appearance.

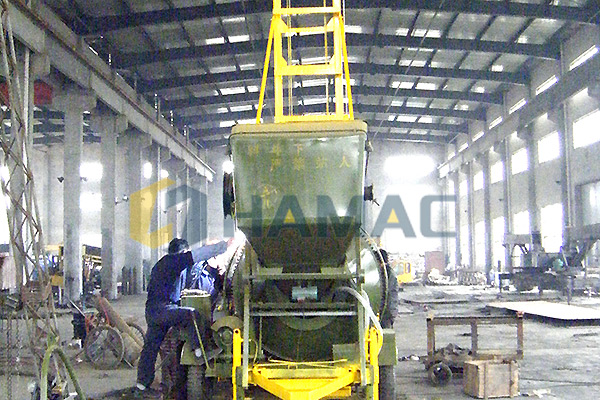

Производственный процесс
Спецификация
| Model | JZC250 | JZC350 | JZM350 | JZC500 | JZM500 | JZC750 |
| Discharge volume (L) | 250 | 350 | 350 | 500 | 500 | 750 |
| Charging volume (L) | 320 | 560 | 560 | 800 | 800 | 1200 |
| Capacity (m3/h) | 6-8 | 10~14 | 15~18 | 18~20 | 20~25 | 25~30 |
|
Drum rotating speed(r/min) |
17 | 14 | 15 | 13 | 13 | 13 |
|
Max. aggregate size (mm) |
60 | 60 | 60 | 60~80 | 60~80 | 60~80 |
|
Water feeding precision |
≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% |
| Mixing power (kw) | 4 | 5.5 | 5.5 | 11 | 11 | 15 |
| Lifting power (kw) | 4 | 4.5 | 4.5 | 5.5 | 5.5 | 7.5 |
| Water pump (kw) | 0.55 | 0.55 | 0.55 | 0.75 | 0.75 | 1.1 |
| Tyre type | 6.50-16 | 6.50-16 | 6.50-16 | 7.50-16 | 7.50-16 | |
|
Max. hauling speed (kw/h) |
20 | 20 | 20 | 20 | 20 | |
| Dimensions (mm) |
2260x1990 x2750 |
2766x2140 x3000 |
3800x2050 x2690 |
5226x2200 x5460 |
6200x2110 x5300 |
6116x2056 x6060 |
| Weight (kg) | 1300 | 1950 | 1970 | 3100 | 3200 | 4200 |
Note: Our products are being updated constantly, all rights reserved by HAMAC.
