Belt Conveyor type Concrete Batching Plant

Введение продукта

Belt conveyor type concrete batching plant is a plant which is an ideal equipment to produce the commercial concrete which is used to produce plastic concrete, dry concrete and so on. Because of its high efficiency, it is being widely used in big and medium scale construction project, road and bridge, and the factories to produce the pre-fabricated concrete component.

hamacchina
0086-371-86525099
sales@hamacchina.com
0086-15136236223

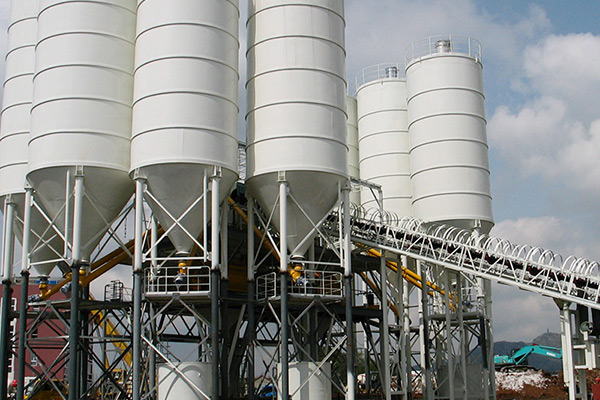

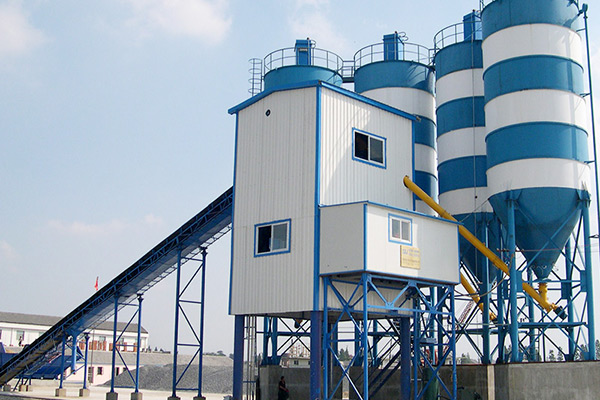

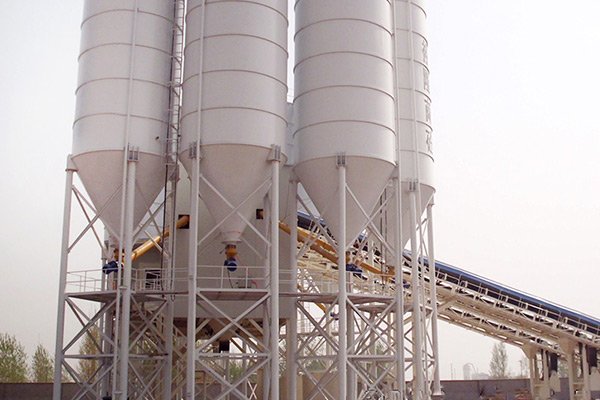

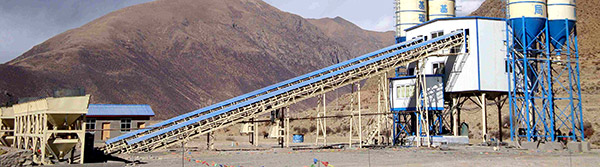

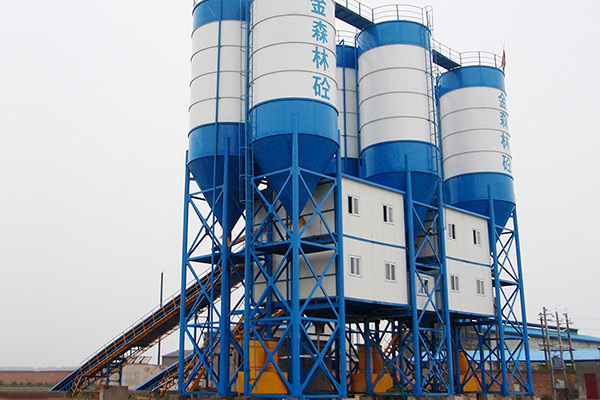

Подробные фотографии

FEEDBACK

Performance

1. With belt conveyor to feed the mixer, work stably and continuously;
2. Adopt twin horizontal shaft forced type concrete mixer or planetary mixer, it adopts two heavy duty gear box, electrical lubrication system, hydraulic discharge system, durable mixing device, etc.
3. Excellent environmental protection, dust collection system and anti-noise design.
4. Accurate weighing system (aggregate, cement, water, additive).
5. PC+PLC control, vividly display the production process on the screen, so that the operator can monitor in real time; save the data of production perimeters in the computer, print daily, monthly or yearly statistic reports of production.

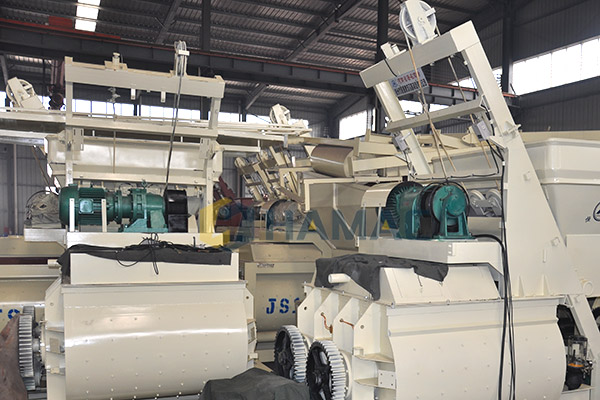

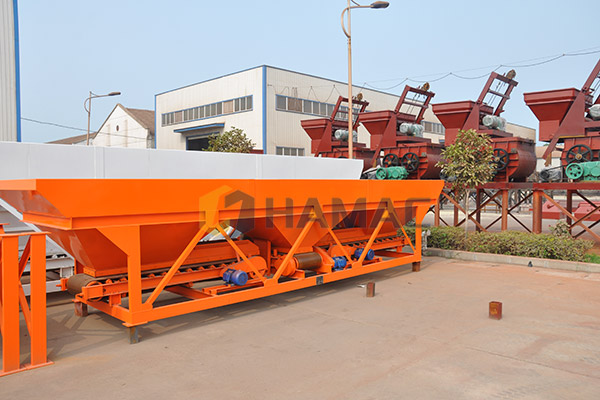

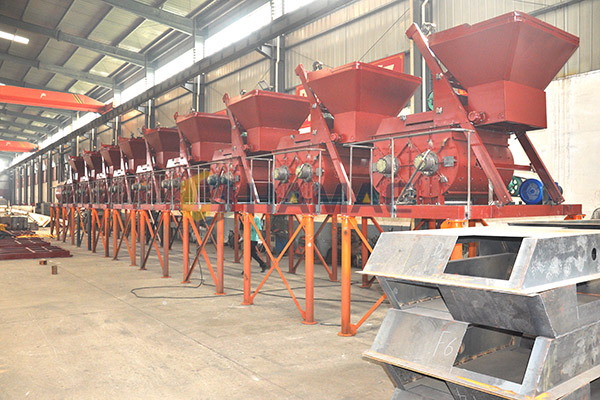

Manufacturing Process

Specification

Technical data	Model
Technical data	HZS60	HZN60	HZS90	HZN90	HZS120	HZS180(150)	HZS240(200)
Theoretical capacity(m³/h)	60	60	90	90	120	180(150)	240(200)
Mixer model	JS1000	MP1000	JS1500	MP1500	JS2000	JS3000	JS4000
Batching system	PLD1600	PLD1800	PLD2400	PLD2400	PLD3200	PLD4800	PLD6400
Discharging height (mm)	4100	4840	4100	4100	4100	4100	4100
Maximum aggregates size(mm)	60(80)	60(80)	60(80)	60(80)	60(80)	60(80)	60(80)
automatic Cycle time(s)	60	60	60	60	60	60(72)	60(72)
Weighing Precision of Aggregate	±2%	±2%	±2%	±2%	±2%	±2%	±2%
Weighing Precision of Cement	±1%	±1%	±1%	±1%	±1%	±1%	±1%
Weighing Precision of Water	±1%	±1%	±1%	±1%	±1%	±1%	±1%
Weighing Precision of Additive	±1%	±1%	±1%	±1%	±1%	±1%	±1%
Total power(KW)	106	114	145	145	175	215	295
