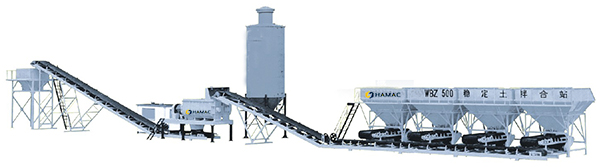

Modular Stabilized Soil Batching Plant
Введение продукта
Module stabilized soil mixing plant material has a strong adaptability, grading variety, good reliability, easy operation, compact structure, reasonable layout. Widely used in highway, railway, municipal engineering, airport construction and other applications require subbase materials.The modular stabilized soil mixing plant equipped with the industrial micro-programmed system has various advantages like even mixing, high productivity, multiple gradation, high modularization as well as easy installation, debugging and maintenance. This equipment is widely applicable to the construction of foundations of all kinds of high-grade roads, airports and so on.
- hamacchina
- 0086-371-86525099
- sales@hamacchina.com
- 0086-15136236223

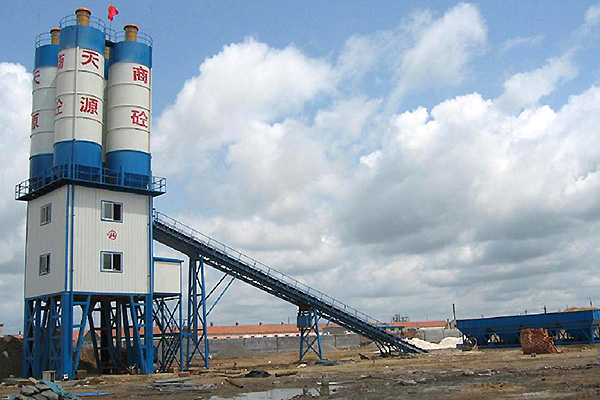

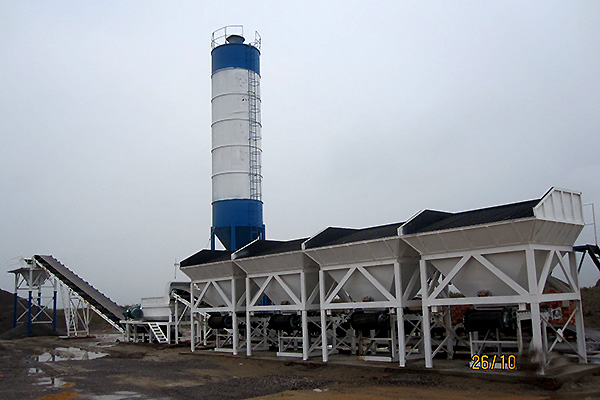

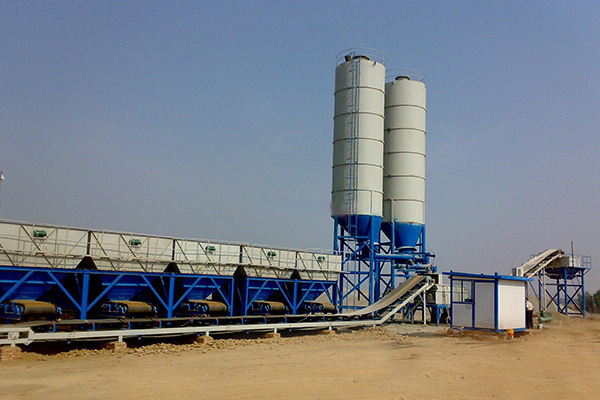

Подробные фотографии
Performance
1. easily disassembled and assembled, save time;
2. operate easily, maintain conveniently;
3. higher capacity and efficiency;
4. matching ratio accurate, mixing uniformly; weighing automatic;

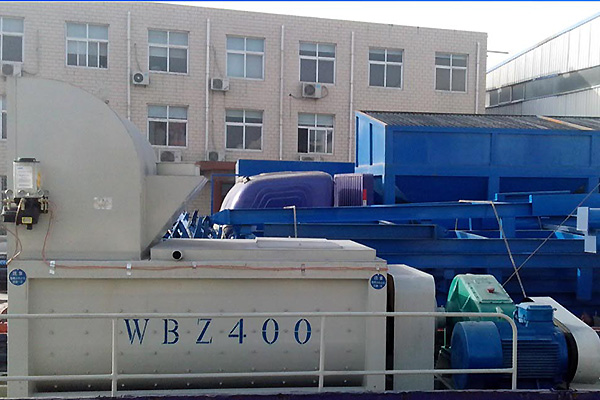

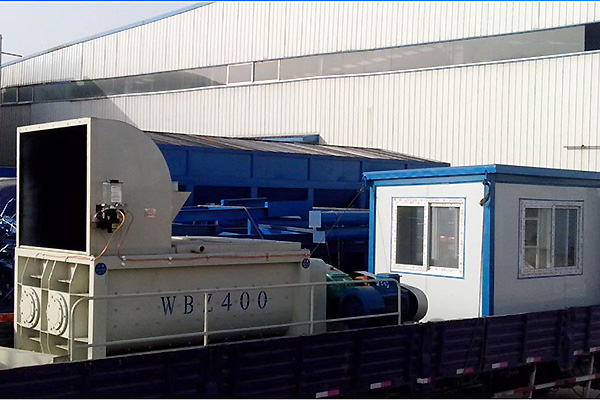

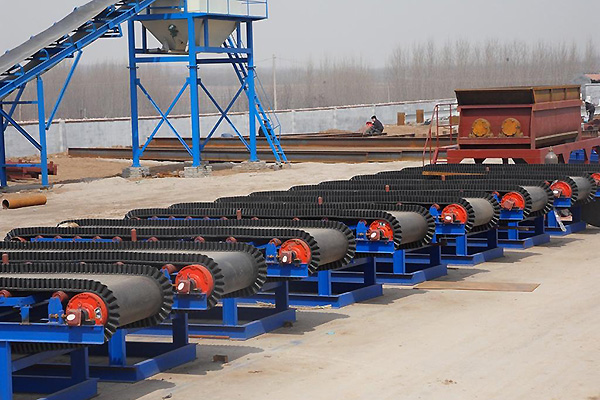

Manufacturing Process
Specification
| Model | MWCB300 | MWCB400 | MWCB500 | MWCB600 |
| Type | twin-shaft compulsory mixer | |||
| Capacity (t/h) | 300 | 400 | 500 | 600 |
| The aggregate silo volume m3 | 3×12 | 4×12 | 4×12 | 4×15 |
| Max. aggregate size(mm) | ≤60 | |||
| Accuracy of batching (%) | Aggregate ±2、cement ±1、water ±1 | |||
| Feeding height (m) | 3.9 | 4.1 | 4.1 | 4.5 |
| Discharging height (m) | 3.5 | 3.5 | 3.5 | 3.8 |
| The speed of mixer | 632r/min | 632r/min | 632r/min | 632r/min |
| Total power (kw) | 95 | 105 | 120 | 140 |
|
1. Total power does not include the screw conveyor. 2. The quantity and volume of hopper can be designed according to customers’ request; 3. Any change of technical data should not be advised additionally; |
||||
