Modular Concrete Batching Plant

Введение продукта

The modular design without foundation and commissioning enables convenient and quick installation. It only takes three days from installation to use. All necessary facilities such as: control room, laboratory and maintenance room are equipped. Cost effective. An ideal choice for engineering.

hamacchina
0086-371-86525099
sales@hamacchina.com
0086-15136236223

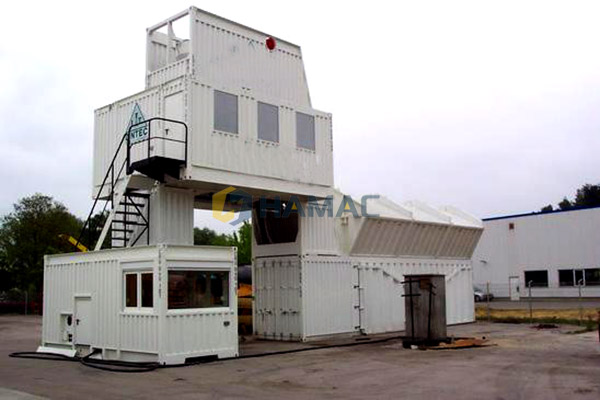

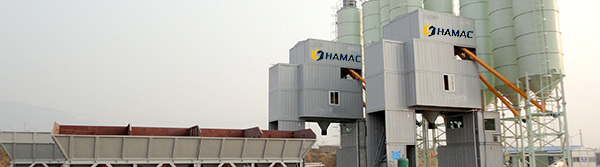

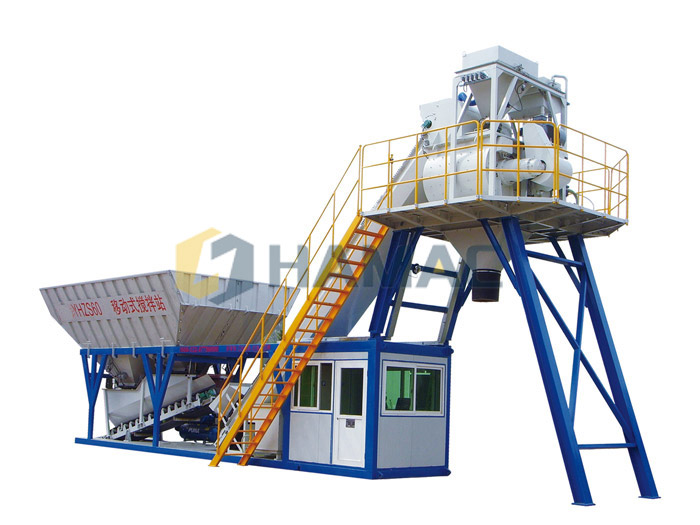

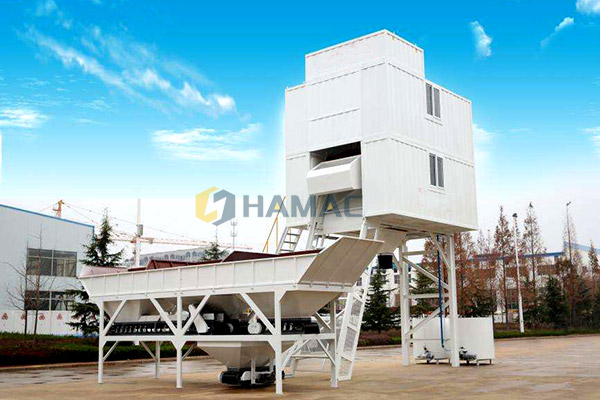

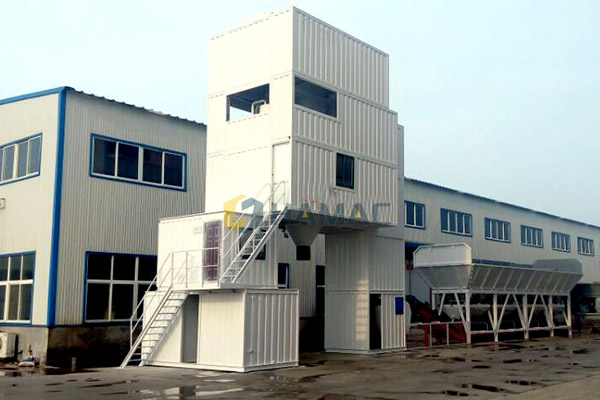

Подробные фотографии

FEEDBACK

Performance

1. Adopt twin-shaft compulsory concrete mixer as the assorted mixer, which has obvious characteristics like fast mixing, wide mixing range and good quality concrete, etc to satisfy the customers' requirement.
2. Adopt the technology of “click to supplement”, to ensure the accuracy of dynamic measurement no more than ±1%.
3. Adopt additive weighing scale pneumatic conveying equipment, applied for national patent, to measure and convey additives, which completely avoid the quality accident caused by the failure of additive system.
4. Assemble two suits operating devices(touch-screen and computer), and can be operated manually, semi-automatically and automatically, which ensures the working reliability.
5. The fully accounted concrete technology enable perfect functions like: unique ratio deposit, self compensation of aggregates drop, scale-owing, alarming and revising of over-scale, on-line modifying formula, data saving and query, and report-print and so on.
6. Use pre-debugged air plugs to ensure quick installation and commissioning.

Manufacturing Process

Specification

Item	Type
Item	YHZS60	YHZS90	YHZS120	YHZS180
Theoretical Productivity(m³/h)	60	90	120	180
Mixer	JS1500/1000	JS2250/1500	JS3000/2000	JS4500/3000
Batching System	PLD1600	PLD2400	PLD3200	PLD4800
Discharging Height(mm)	4000	4000	4200	4200
The Max. Diameter of the Aggregates(mm)	60(80)	60(80)	60(80)	60(80)
Transportation Dimension(L×W×H)mm	17500X2300X4300	/	/	/
