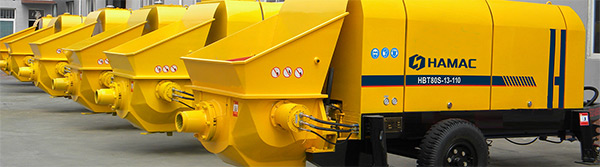

Small and Medium Concrete Pump

Введение продукта

Small and medium concrete pump, using advanced technology of concrete pump in the world, it is the first advanced floor heating construction equipment in domestic and suitable for construction of large area, high efficiency in pea gravel concrete packing layer or mortar packing layer of floor heating engineering. Adopting international famous brand spare parts, reasonable design and high stability, greatly improving working efficiency and reducing labor intensity. This product sell to major cities nationwide and get good market response, win the high praise of our customers. Selling first in domestic for three consecutive years.

hamacchina
0086-371-86525099
sales@hamacchina.com
0086-15136236223

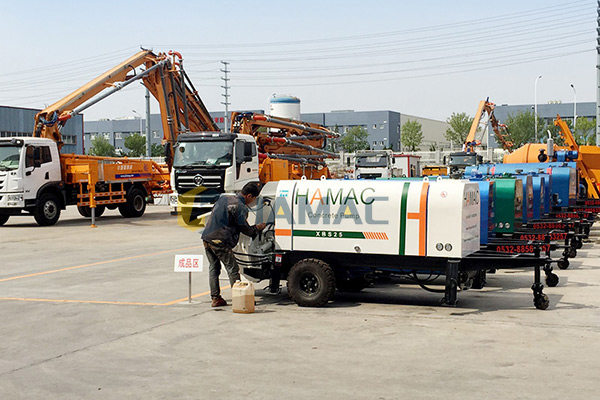

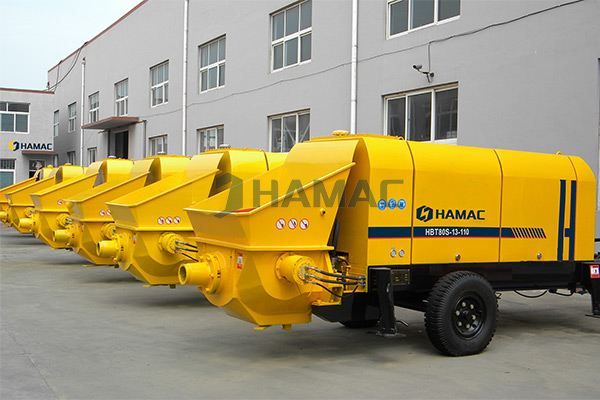

Подробные фотографии

FEEDBACK

Performance

1. Distribution valve adopts the advanced S pipe value system,with good sealing performance,simple and reliable structure,and easy replacement of wearing parts;
2. S pipe is equipped with floated wearing ring, compensating attrition automaticly, good tightness.
3. The counterforce on specially designed “S” valve is received by hopper wall to assure the service life of goggle plate and cutting ring.
4. Outlet pressure is high, which satisfy the high building construction and long distance transmission requirements.
5. Hydraulic system adopts U return circuit, reversing is fast and efficient.
6. Hydraulic oil cooling adopts advanced air cooling system, it do not need connect water source and easy to use.
7. Reverse pumping function can facilitate cleaning the conveying pipe.
8. Automatic lubricant filling device can eliminate the trouble of manual filling and extend the service life of the parts with less abrasion in the lubricants.
9. Most electrical appliance components of electrical system are imported, and PLC for control system,with reliable working,strong adaptability,and wired remote control;
10.Electric case is equipped with wired remote control handle.

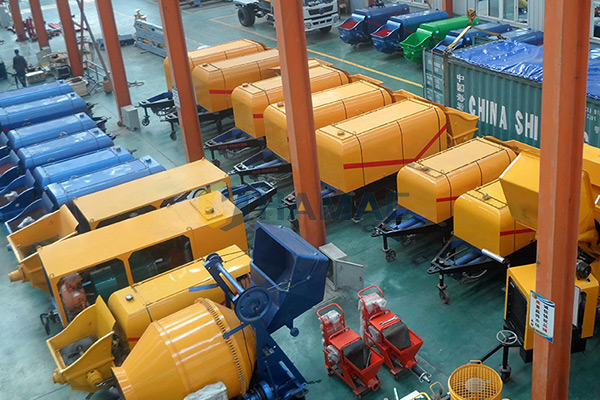

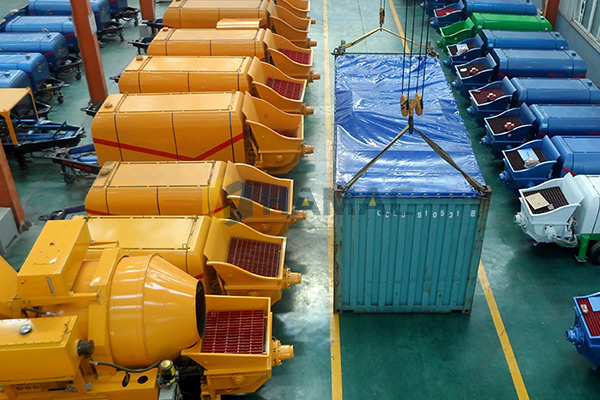

Manufacturing Process

Specification

Item		Unit	Electromotor series		Diesel series
Item		Unit	HBT40	HBT50	DHBT40	DHBT50
Theoretic concrete delivery volume		M3/h	40	50	40	50
Theoretic concrete delivery pressure		Mpa	10	12	10	12
Hydraulic pressure		Mpa.	25	28	25	28
The type of distribution valve		-	S tube valve
Electromotor(diesel)power		Kw	45	55	56	56
electromotor(diesel) rated speed		r/min	1480	1480	2200	2200
Main oil pump		-	Japanese Kawasaki
Main cylinder di./pole dia. Stroke		mm	φ100/70×1000	φ125/80×1200	φ100/70×1000	φ125/80×1200
Diameter of delivery cylinder		mm	φ600×1000	φ200×1200	φ160×1000	φ200×1200
Capacity of hyfrulic oil tank		L	200	240	200	240
Hopper capacity		L	450	600	450	600
Overall weight		Kg	3200	3500	3400	3700
Dimension(L×W×H)		mm	4970×1680×1800	5270×2000×1840	4970×1680×2580	5270×2000×2620
Max. delivery distance	Vertical	m	120	150	120	150
Max. delivery distance	Horizontal	m	300	350	300	350
