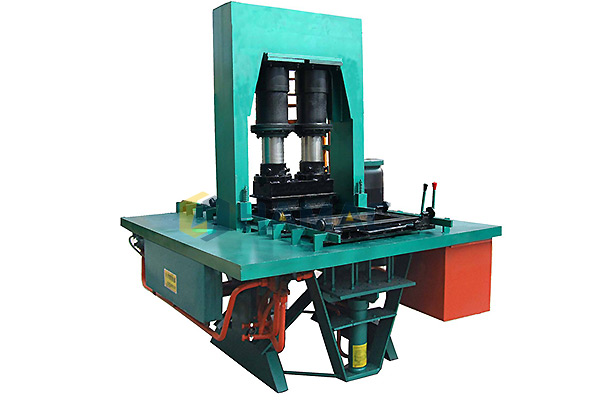

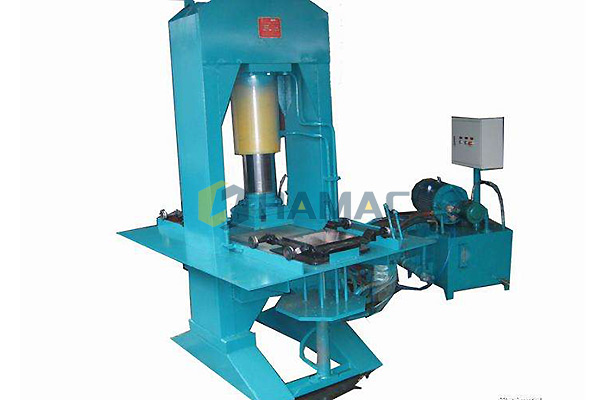

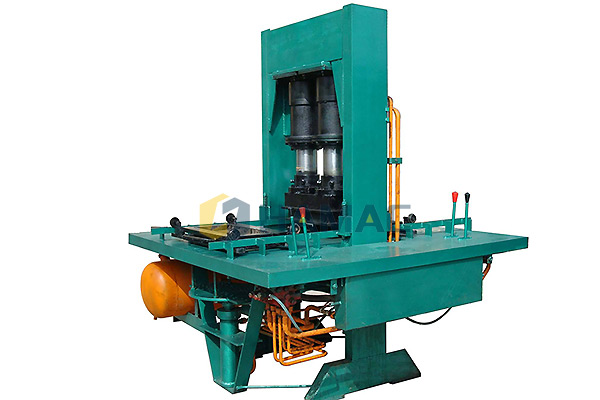

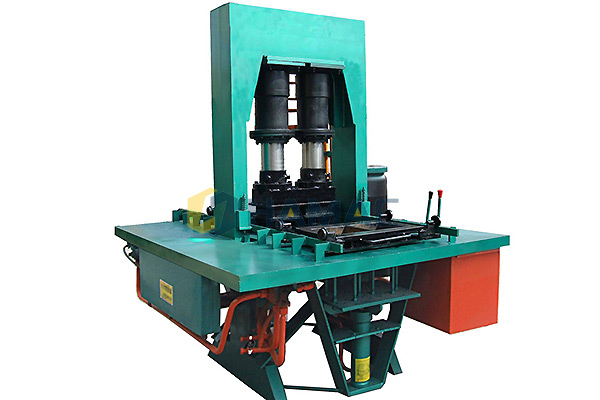

HM-150TB Hydraulic Paving Block Machine

Введение продукта

HM-150TB Hydraulic Paving Block Machine uses of advanced dual hydraulic proportional control technology. This could branch of the oil hydraulic system pressure and regulate fuel efficiently. We offer Hydraulic Hollow Block Making Machine that is shaped like an egg laying type hydraulic activated Concrete Block Making Machine on wheels. This machine places block on the concrete floor and move about laying other blocks. All type of concrete blocks can be fabricated by affixing different designs of concrete mould and ram in the machine.

hamacchina
0086-371-86525099
sales@hamacchina.com
0086-15136236223

Подробные фотографии

FEEDBACK

Performance

1. Hydraulic paving block machine adopts mass flow automatic variable pump and electromagnetic hydraulic valve, with high pressure, rapid lifting, compression automatic bounce back, and adjustable compressing time, high productivity. can produce many kinds of paver and interlock bricks,just exchanging the moulds.
2. Hydraulic sidewalk brick making machine using large-flow automatic variable pump and electromagnetism valve to meet strong pressure speedy lifting and pressuring time adjustment.

Manufacturing Process

Specification

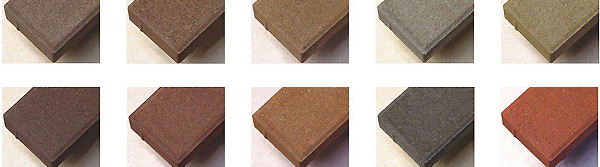

Our products are mainly producing color blocks/bricks, paver, interlock,etc. With high pressure, the blocks are of high-density.

HM-150TB paver machine main technical parameter:

Max pressure	1500KN
Total power	11kw
Production	1500-2000 blocks/day
Machine weight	3200kg
Machine size	2390x2200x2550mm
Maximum specification（block）	500x500x150mm
Working position	Two working positions
blocks	Can make all kind of paver block,kerbstone,lawn block
Workshop area : 200m2 , need about 3-4 workers .the office , curing area and stacking area to arrange according your fact status.

Production Capacity

Size(LxWxH)	Pcs/ 8 Hr	Size(LxWxH)	Pcs/ 8 Hr
Paver:200X100X60	1800-2000pcs	Paver:250x250x60	1800-2000pcs
Paver:200X165X60	1800-2000pcs	paver	3600-4000pcs
Paver:225X112.5X60	1800-2000pcs	paver	1800-2000pcs
