Mini Portable Concrete Mixer

Mini Portable Concrete Mixer

Введение продукта

Mini portable concrete mixer is used for mixing dry-hard ,semi-hard, plastic and various proportions of the concrete ,and can meet different requirements of the construction projects. There will be three different ways to drive it as below: Gasoline/Diesel/Motor.It is suitable for mixing mortar, concrete, with merits of small volume, easy to move, high-efficiency and outstanding quality.

hamacchina
0086-371-86525099
sales@hamacchina.com
0086-15136236223

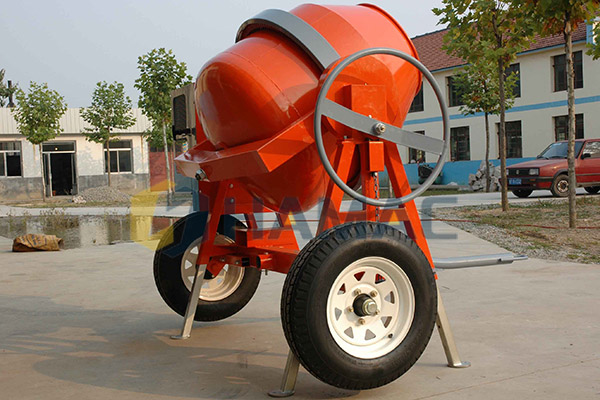

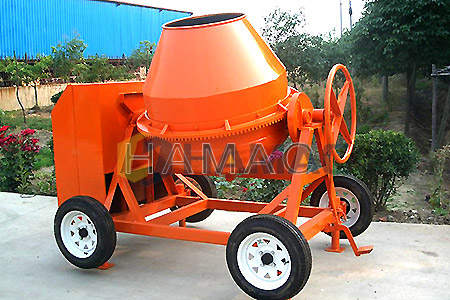

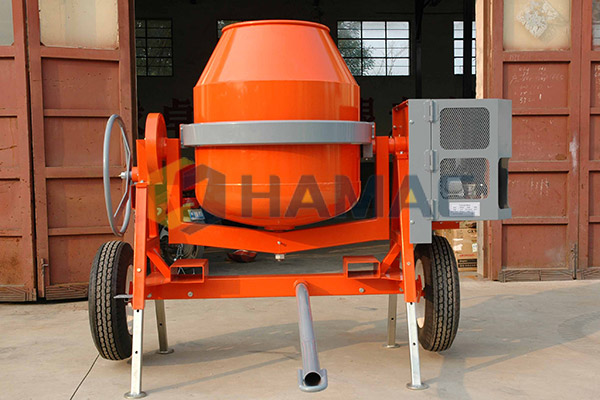

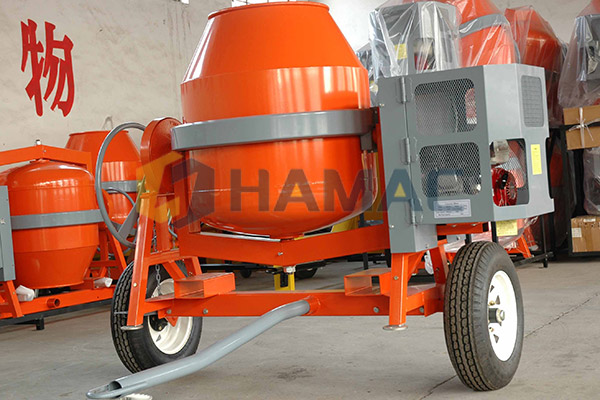

Подробные фотографии

FEEDBACK

Спектакль

1.All-steel construction, Mini Concrete Mixer has long life span.
2.Large wheels, It's easy to be moved to different places;
3.Diesel/gasoline/electric motor, optional as customers' requirement.
4. Cast iron gear for Mini Concrete Mixer steady and silent working.
5.Spray painted surface, colors as your request. Mini Concrete Mixer is rust- proof.
6.EPA certificated wheels, wheels size:520mm.
7.Guarantee time: six months warranty
8.water supply mode: direct input
9.Discharging:semi-automatic

Производственный процесс

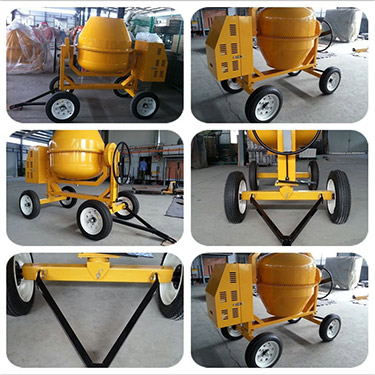

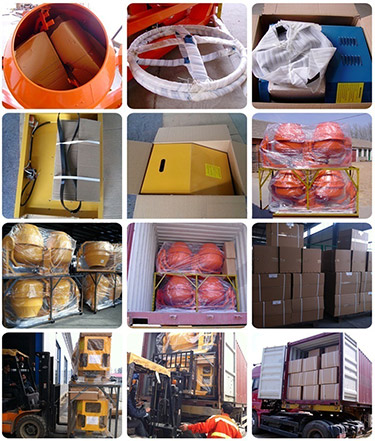

Detailed Photos	packing and shipping

Спецификация

Model	Capacity	NW	RPM of Drum	Productivity	Engine					Package/mm(2set)	QTY(set)
Model	L	KG	RPM of Drum	m³/H	RPM	Diesel	Gasoline	Electric Motor	Voltage/Hz	Package/mm(2set)	40"HP	20"GP
HA260	260	250	18	6-10	1800	4HP	5.5HP	1.5KW	as your choice	1810800992	52	24
HA300	300	270	20	8-12	1800	4HP	5.5HP	1.5KW	as your choice	20408801080	52	24
HA350	350	290	20	10-14	1800	6HP	6.5HP	2.2KW	as your choice	20408801155	52	24
HA400	400	330	20	12-16	1800	6HP	6.5HP	2.2KW	as your choice	20408801235	44/50	22
HA450	450	340	20	14-18	1800	6HP	6.5HP	2.2KW	as your choice	22859101250	44/50	22
HA500	500	350	17	16-20	1800	9HP	9HP	3KW	as your choice	22859101250	36	18
HA600	600	370	17	20-24	1800	9HP	9HP	3KW	as your choice	229510951275	30/32	15
HB260	260	260	18	6-10	1800	4HP	5.5HP	1.5KW	as your choice	18108001100	36/38	18
HB300	290	290	18	8-12	1800	4HP	5.5HP	1.5KW	as your choice	195090001220	36/38	18
HB350	350	325	20	10-14	1800	6HP	6.5HP	2.2KW	as your choice	19509001220	34/36	17
HB400	400	340	20	12-16	1800	6HP	6.5HP	2.2KW	as your choice	19509001220	34/36	17
HB450	450	350	20	14-18	1800	6HP	6.5HP	2.2KW	as your choice	19509001235	34/36	17
HB500	500	360	17	16-20	1800	9HP	9HP	3KW	as your choice	203010001245	30/32	15
HB600	600	370	17	20-24	1800	9HP	9HP	3KW	as your choice	203010001340	30/32	15
